Antaira Technologies

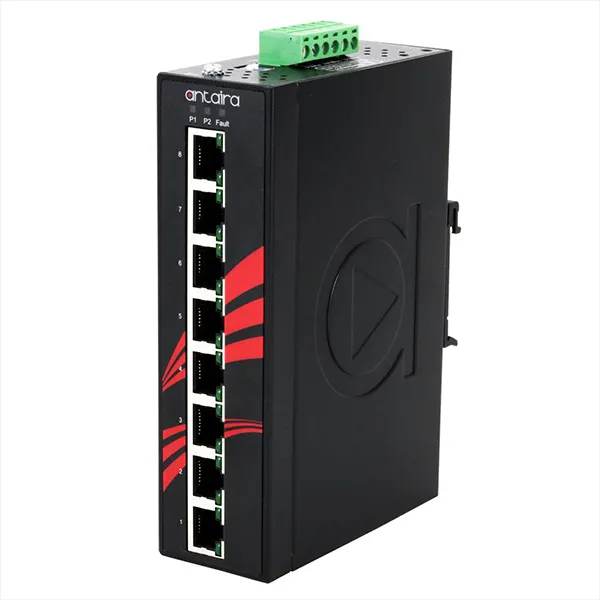

LNP-0800G-24-E, 8-Port Industrial PoE+ Unmanaged Ethernet Switch

LNP-0800G-24-E series is an 8-port industrial PoE+ unmanaged switch that supports 8*10/100/1000Tx Ethernet ports. Having a backward compliant PoE+ switch, these series will support IEEE802.3af/at standards providing a maximum of 30 watts per port with an input voltage of 12-36VDC.

These series can be used in rugged and harsh environments. LNP-0800G-24-E series is housed in a hardened IP30 rated metal enclosure that includes DIN-rail and wall mounting hardware. There are two wide operating temperature models for either a standard temperature range (STD: -10°C to 60°C) or an extended temperature range (EOT: -40°C to 70°C). High EFT and ESD protection for any industrial networking application within factory automation, ITS (including on-vehicle), solar, security, or any other outdoor environments is provided by the LNP-0800G-24-E series.

Characteristics:


• These series can be used for vehicle applications as they are E-Mark certified
• LNP-0800G-24-E series support 8-Port 10/100/1000Tx Gigabit RJ45
• LNP-0800G-24-E series support 9.6Kbytes Jumbo Frame
• They support Auto MDI/MDI-X Function
• They consist of Store-and-Forward Switching Architecture
• Surge Protection: 2,000 VDC Support
