7-Port Industrial Gigabit

7-Port Industrial Gigabit

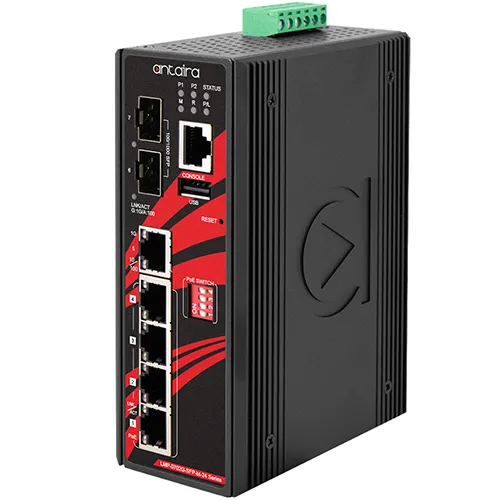

7-Port Industrial Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch, with 4*10/100/1000Tx (90W/Port), 1*10/100/1000Tx, and 2*100/1000 SFP Slots; 12~55VDC Power Input.

Antaira Technologies’ LMP-0702G-SFP-bt-24-V2 is a 7-port industrial Gigabit PoE++ managed Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE802.3bt for a maximum of 90W/port, 1*10/100/1000Tx Gigabit Ethernet port, and 2*100/1000 dual rate SFP slots for fiber connection. The LMP-0702G-SFP-bt-24-V2 is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.

The LMP-0702G-SFP-bt-24-V2 is IP30 rated and DIN-rail mountable. It support standard operating temperature from -10°C to 65°C (STD). It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.

Features of 7-port Industrial Gigabit:

  • Supports 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port, 1*10/100/1000Tx RJ45 Port, and 2*100/1000 SFP Slots

  • Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS v1/v2 (Recovery Time <50ms)

  • Configuration: Web Console, Telnet, CLI Command

  • Supports IGMP v1/v2/v3, up to 1024 Groups

  • Supports QoS (IEEE802.1p) and CoS/ToS

  • Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3

  • Power Input: 12~55VDC in 6-Pin Terminal Block

  • Reverse Polarity Protection

  • IP30 Protection

  • DIN-Rail or Wall Mountable

  • Operating Temperature Range (EOT): -40°C to 75°C

  • 5-Year Warranty
