Antaira Technologies

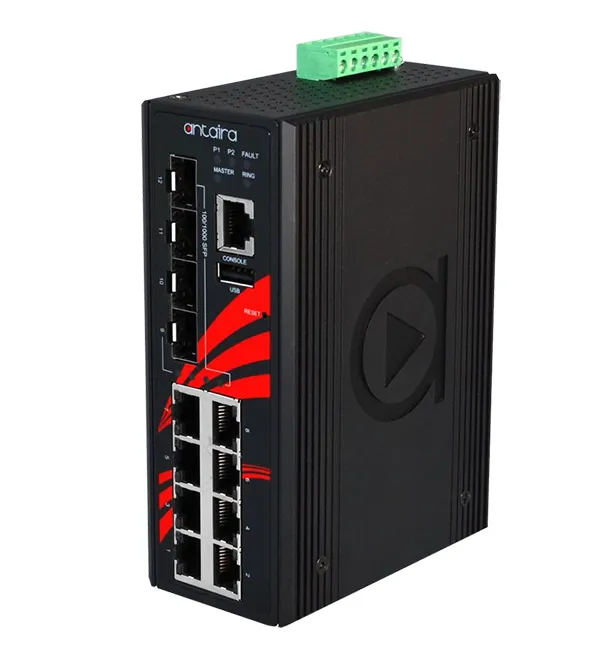

LMP-1204G-SFP, 12-Port Industrial Managed PoE+ Ethernet Switch

LMP-1204G-SFP Managed Ethernet Switch is a 12-port industrial PoE+ managed Ethernet switch that is embedded with 8*10/100/1000Tx Ethernet ports that support IEEE802.3at/af for a maximum of 30W/port, and 4*100/1000Fx SFP fiber ports that support either Single or Multi-Mode modules.

It comprises of user-friendly web management console design. The LMP-1204G-SFP, a fully manageable layer 2 Ethernet Switch, supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. Network Management for remote SCADA systems or control networks can be enhanced using the advanced network filtering and security functions such as VLAN, IGMP, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X/ HTTPS/ SSH/ SSL.

These managed Ethernet Switches provide high EFT and ESD protection for industrial networking applications such as power/utility, water/wastewater, oil/gas/mining, factory automation, security surveillance within transportation, ITS and any other outdoor or harsh environment. The operating temperature range of LMP-1204G-SFP is -10°C to 70°C and it is IP30 rated, DIN-rail mountable.

Characteristics:


• LMP-1204G-SFP supports 8*10/100/1000Tx IEEE 802.3at/af Compliant with 30W/Port, and 4*100/1000Fx SFP Fiber Slots
• Network Redundancy: STP/RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
• It supports IPv4/IPv6, and DHCP Option 66/67/82
• LMP-1204G-SFP supports Modbus/TCP Protocol for Device Management and Monitoring
• Configuration: Web Console, Telnet, CLI Command
• It consists of enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
