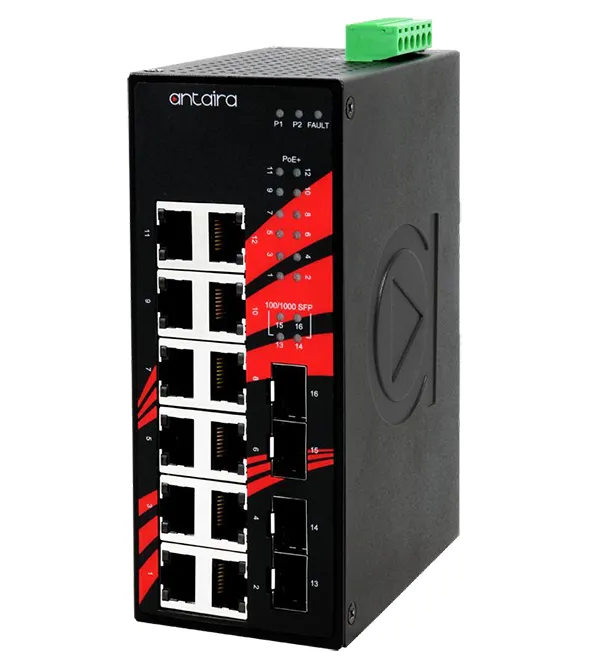

LNP-1604G-SFP, 16-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch

LNP-1604G-SFP, an industrial gigabit PoE+ unmanaged Ethernet switch series, contains twelve 10/100/1000TX RJ45. Ports that support IEEE 802.3af/at PoE/PoE+ standards supply up to 30 watts per port. For the connection of fiber, LNP-1604G-SFP has four dual rate (100/1000) SFP slots. It can be used for connections that require high density port connections with full high PoE power outputs, wide network bandwidth, and multiple gigabit fiber connections.

LNP-1604G-SFP can be used for industrial applications such as security video surveillance, GigE machine vision, process control automation and intelligent transportation. It is IP30 rated design with both DIN-Rail and wall mounting options. This product series provides high EFT and ESD protection with a redundant power input support of 48~55VDC. There are two wide operating temperature models to support -10 to 70 °C environment.

Characteristics:


• LNP-1604G-SFP supports 12*10/100/1000Tx IEEE 802.3at PoE+ Compliant (PSE: 30W/Port), + 4*100/1000 SFP Slots
• It contains store-and-Forward Switching Architecture
• It includes 8K MAC Address Table
• Surge Protection: 2,000 VDC Support
• ESD Protection: 6,000 VDC Support
• Redundant Power Input Design: 48~55VDC
