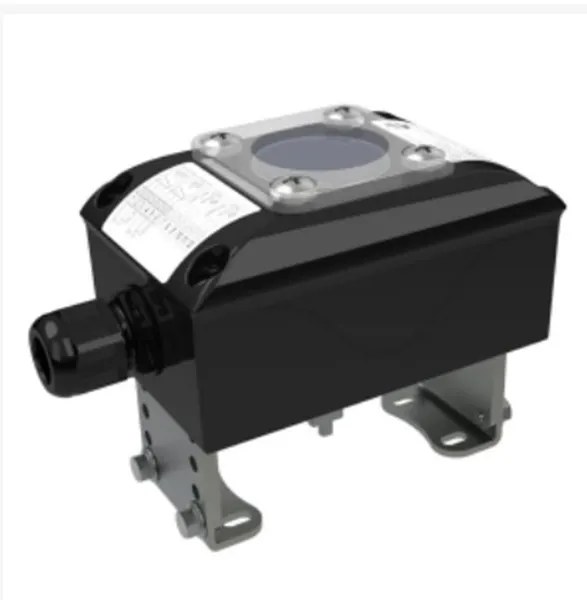

Limit switch box with aluminum case and Aisi 304 bracket adjustable in height: 20,30,40,50 mm and 2D or 3D visual indicator complete with 1x M20 x 1.5mm cable gland - available complete with 2x cable glands and also with pre-assembled cable 500mm long - NPT 1/2 and M12 connections are also available on request
Degree of protection: IP66-IP67-IP68
The standard terminal board has 6 poles + optional 6 others for solenoid valve connection
It is proposed with SPDT mechanical limit switches, inductive 2 or 3 wire Pepper & Fuchs / IFM sensors and magnetic sensors
The standard version is SIL 1-3 certified
EAC and UL certifications are available to request
The standard color is black
In the ATEX -II 2GD version this box is available for zones 1-21 / 2-22 Ex ia, Ex de, t
