Antaira Technologies

Industrial Gigabit

5-Port Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch, with 4*10/100/1000Tx (90W/Port) and 1*10/100/1000Tx. 12~55VDC Power Input.

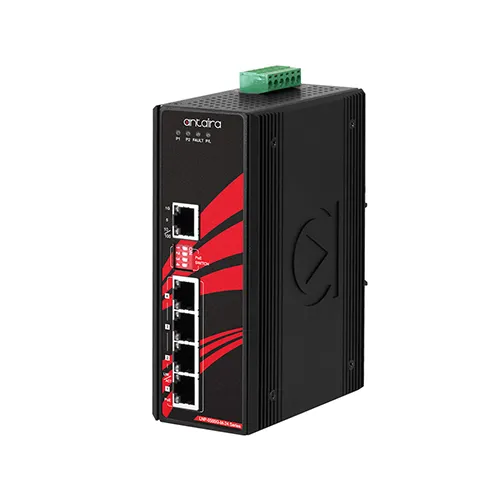

Antaira Technologies’ LNP-0500G-bt-24 is an industrial gigabit PoE++ unmanaged Ethernet switch featuring 4*10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3bt for a maximum of 90W/port and 1*10/100/1000Tx Ethernet port. It supports industrial standard temperatures range from -10°C to 65°C and low voltage power input from 12 to 55V DC. It is an ideal solution for rapid, unmanaged gigabit network expansion with PoE++ capabilities.

LNP-0500G-bt-24 is IP30 rated and DIN-rail mountable. It also provides Ethernet connectivity with PoE functions for outdoor or harsh industrial automation application environments, such as security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.

Features of Industrial Gigabit:

• Supports 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port and 1*10/100/1000Tx Ethernet Port

• Store-and-Forward Switching Architecture

• 10Gbps Back-Plane (Switching Fabric)

• 8K MAC Address Table

• 10.0Kbytes Jumbo Frame Support

• Redundant Power Input Design: 12~55VDC

• Built-in 1 Relay Output for Power Failure Warning

• IP30 Rugged Metal Case Design

• DIN-Rail and Wall Mount Support Included

• Operating Temperatures (STD): -10°~65°C

• 5-Year Warranty
