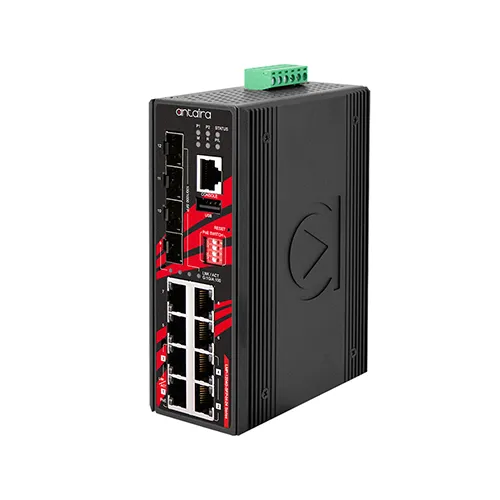

12-Port Industrial Gigabit
12-Port Industrial Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch, with 4*10/100/1000Tx (90W/Port), 4*10/100/1000Tx (30W/Port), and 4*100/1000 SFP Slots; 12~55VDC Power Input.
Antaira Technologies’ LMP-1204G-SFP-bt-24 is a 12-port industrial Gigabit PoE++ managed Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE 802.3bt for a maximum of 90W/port, 4*10/100/1000Tx Ethernet ports with IEEE 802.3af/at support for a maximum of 30W/Port, and 4*100/1000 dual rate SFP slots for fiber connection. The LMP-1204G-SFP-bt-24 is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.
The LMP-1204G-SFP-bt-24 is IP30 rated and DIN-rail mountable. It supports operating temperature range from -10°C to 65°C (STD). It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.
Features of 12-Port Industrial Gigabit:
-
Supports 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port, 4*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port, and 4*100/1000 SFP Slots
-
Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS v1/v2 (Recovery Time <50ms)
-
Configuration: Web Console, Telnet, CLI Command
-
Supports IGMP v1/v2/v3, up to 1024 Groups
-
Supports QoS (IEEE 802.1p) and CoS/ToS
-
Supports IEEE 802.1Q VLAN, SNMP v1/v2c
-
Power Input: 12~55VDC in 6-Pin Terminal Block
-
Reverse Polarity Protection
-
IP30 Protection
-
DIN-Rail or Wall Mountable
-
Operating Temperature Range (STD): -10° to 65°C
-
5-Year Warranty
