BOS Box order system

BOS Box order system

Logistics success concept for the fresh food and beverages sector

Automatic picking of stacks in the fresh food and beverages area

The Box Order System (BOS) is a WITRON development that not only meets the high expectations in terms of product handling, but also sets new standards in terms of efficiency, throughput and ergonomics in the fresh produce environment. Due to its high flexibility, the solution can also be used in beverage crate logistics. Because many processes in the branch-specific picking of crate towers and individual crates correspond to those of whole container handling in the fresh food area. And what's more, there are only very few fully automatic solutions with a high level of efficiency on the market for this industry.

structure and facts

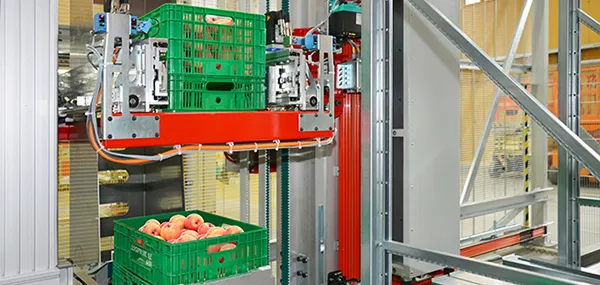

The solution has a modular structure. Each module consists of a replenishment stacker crane and four picking stacker cranes - the so-called Box Picking Machines (BPM). After the goods have been received, the sorted box stacks are first separated from the WE pallet. The replenishment SRMs then store the tote stacks directly in the pick front. The special feature: The branch-specific picking of the totes is carried out highly dynamically directly by the newly developed BPM storage and retrieval device. The BPM was designed in such a way that its lightweight telescopic fork does not lift the containers or container stacks, but clamps them. The advantage here is that not only individual crates, but also a number of load carriers tailored to the customer order - ie complete container stacks, Partial stacks or individual crates – can be removed from the rack in a completely flexible manner and, while driving to the next picking position, can be assembled directly by the storage and retrieval machine to form units suitable for the store without errors. Finally, the shipping units formed in this way are automatically palletized, wrapped in film and made available as double-deck pallets just-in-time for delivery in the shipping area.

Characteristics

• Fully automatic logistics system for store-specific storage and order picking of totes / stacks of totes / cartons
• Modular structure - All items are available in each module for picking
• Short throughput times due to lean material flow processes
• Completely flexible picking of tote stacks, partial stacks or individual boxes directly by the Box Picking Machine (BPM)
• Stacking of the containers during the travel time to the next picking position
• Error-free formation of branch-specific units directly through the BPM
• Fully automatic palletizing, strapping and just-in-time provision as double-deck pallets in the shipping area
• Fully automatic replenishment directly into the pick front
• No unstacking necessary when storing
• Storing the stacks of containers on a shelf (ie height) results in a significant saving in area
• Can be used in all temperature zones - also in the beverage sector
