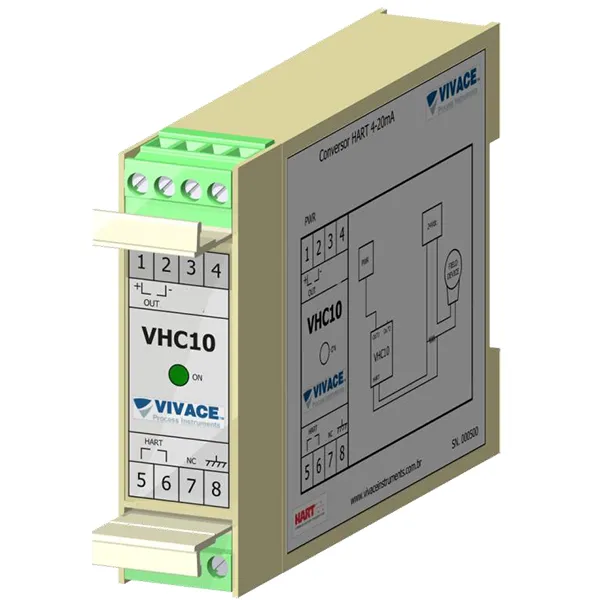

HART to 4-20 mA Panel Converter VHC10-P

HART to 4-20 mA Panel Converter VHC10-P  was designed to create an additional 4-20mA output current channel, offering another analog monitoring to devices that do not own this feature (valve positioners, for instance) or that need an additional variable monitoring on its process.

The converter is powered by a 12 to 45 Vdc voltage, generating a 4-20 mA current channel (according to NAMUR NE43 standard). Its main function is monitoring any variable from another HART® device (independent of its version), configured by user and extern that variable through the current channel.

Benefits:


• HART® 7 Communication Protocol
• Analog Channel for Monitoring
• Configured Variable Monitoring
• Work Range Configuration
• Operation Limits Alarms
• Power Supply 12 to 45 Vdc
• Analog Output 4-20 mA NAMUR NE43
• Operation Temperature -10 to 70 °C
• EDDL and FDT/DTM Tools Compatibility
