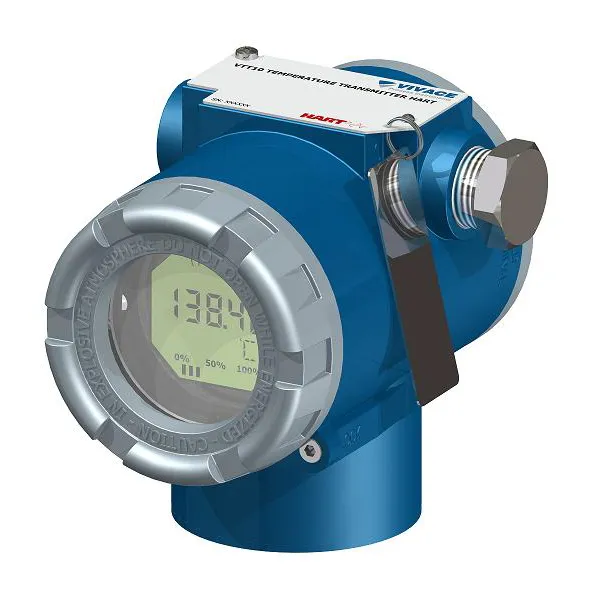

Field Mounting Temperature Transmitter VTT10-F

Field Mounting Temperature Transmitter VTT10-F is a temperature transmitter for field mounting with a multifunctional LCD display. It accepts TC, RTD, Ohm and mV sensors, generating a 4 – 20 mA current signal (HART® 7 model) or a digital signal (Profibus-PA model), according to the measurement type and user configuration.

Benefits of Field Mounting Temperature Transmitter VTT10-F:

High accuracy and long-term stability
Several types of measurement and sensors (TC, RTD, mV and Ω)
Ambient temperature compensation
Self-diagnosis
Five digits, rotary, multifunctional with bargraph LCD
Intuitive, configurable with fast editing function local adjustment
HART® 7 /4-20 mA and Profibus-PA communication protocols
NAMUR NE43 (HART® 7 /4-20 mA model)

Technical and Physical Specifications
Accuracy	± 0.01% Calibrated Span
Power Supply / Output Current	HART/4-20mA: 12 to 45 Vdc, no polarity/ 4-20mA according to NAMUR-NE43
PROFIBUS-PA	9 to 32 Vdc, 12mA quiescent current
Communication Protocol	HART® 7 and Profibus PA
Certified HART® Modem	Hazardous Area Certification Explosion Proof and Intrinsically Safe (pending)
Ambient Temperature Limits	- 40 to 85°C
Configuration	EDDL and FDT/DTM tools, as well as PALM and Android® platform
Assembly	In field, directly on the sensor or through a bracket on a 2” pipe or fixed on a wall or panel
Protection Degree	IP67
Electrical Isolation	Galvanic 1.5 kVac
Housing Material	Aluminum
Approximate Weight with Bracket	600 g
