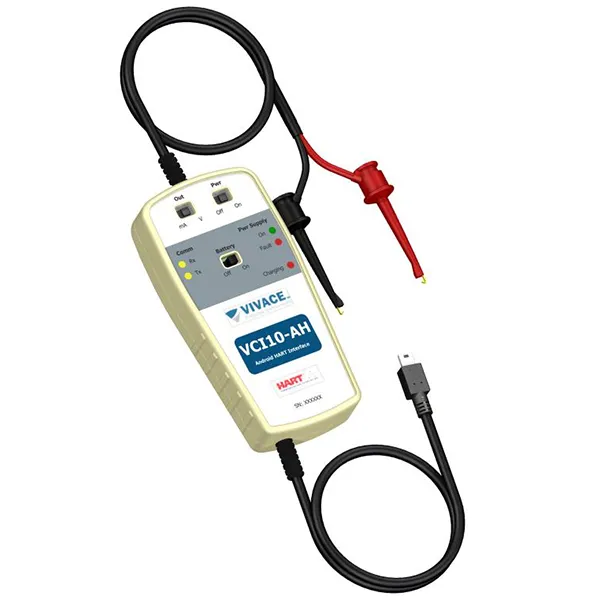

Android Hart Communicator VCI10-AH

Android Hart Communicator VCI10-AH is a HART® communication interface for use with Android® devices. Connection to HART® networks making commissioning, operation, maintenance and calibration processes easier, as well as, diagnostics and data acquisition of any HART® device.

It can operate connected into HART bus or in stand-alone mode. It can power the device directly and there is no need for external source when it is used in stand-alone mode. In initial configuration when the HART® network is not yet established, this feature will be helpful. On Android® devices, the interfaces work with VMT-HART, Vivace Mobile Tool.

Benefits:

Innovative
For use with HART® protocol
Indicative LEDs to report communication status and diagnostics
Mobility with Android® devices (smartphones/tablets)
When in stand-alone mode, it can power the HART® device
Powered by rechargeable long-life battery
Isolated
Vivace Mobile Tool application runs on Android® platform and is based on EDDL technology, which ensures easy integration and let to explore the ease of navigation, as well as, the mobility of Android® devices.
Simple, easy and intuitive use

Technical Specifications
Supply Voltage	Li-ion Power Rechargeable 16340 3.7 V 1600mAh
Output Voltage	24 Vdc or 3.9 mA
Communication protocol	HART® 7
Hazardous Area Certification	None
Operation temperature	0 to 50ºC @10 at 90 RH (non-condensing)
Operational System Compatibility	Android® 4.3 (minimum)
Communication on Android®	Via micro-USB port
Electrical insulation	Galvanic between the micro-USB port and HART® network Connections to HART® bus Micro-USB connection for HOST (1.0m) and retractable clips for HART® side (1.0m)
Dimensions	135 x 65 x 25 (mm)
Housing material	Injected ABS plastic
