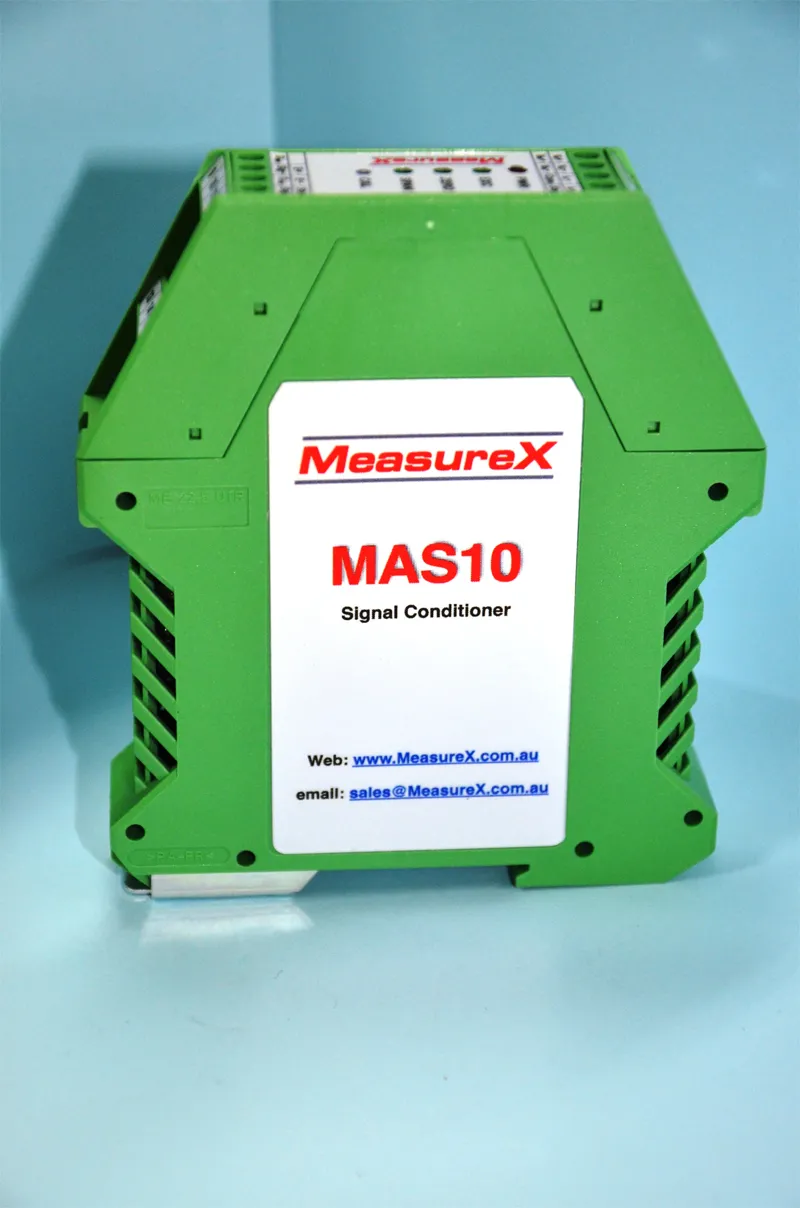

Gauge Signal Conditioner

The standard MAS10 signal conditioner combines a regulated excitation power supply with low level amplifier providing both voltage and current outputs. The strain gauge option adds bridge completion for ¼ and ½ bridge inputs suitable for stress analysis. The MAS10 features high stability, suitable for most industrial and research applications.

Excitation is regulated over a broad range for compatibility with miniature sensors as well as commonly available pressure, force, torque and acceleration transducers. Excitation current is sufficient to drive up to four 350Ω load cells in multi-load cell applications.

Key Features include:


  • Excellent Linearity, High input impedance
  • Compatible with most load cells, pressure sensors, torque
  • Transducers, displacement and other transducers with strain
  • gauge outputs
  • Selectable outputs of ±10V, 0/10V and ±5V
  • Output of 4-20mA, concurrent with -10V to +10V
  • Zero Suppression up to ±100%
