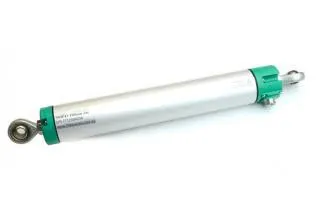

Rod End Potentiometer MDP41

Rod End Potentiometer MDP41

High Measuring Accuracy, Measurement Range of 50 to 600mm, Compact and Rugged Model, Wide Range of Applications, Low Static and Thermal Errors, Suitable for Static Measurement

Rod End Potentiometer MDP41 Characteristics:

Standard Measurement Range (mm)  75, 50, 100, 125, 150, 200, 250, 300, 400, 600, 500, Any other non-standard range

Accuracy (combined LRH)    0.05% FS, 0.1% FS

Output Signal  Potentiometric (Nearly same as input voltage)

Protection Level          IP65

Operating Temp. Range          -30 to +100°C

Temp. Coefficient of Span     1.5ppm FS/°C
