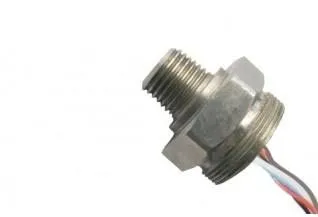

OEM Strain Gauge Pressure Sensor MRA23
High Measuring Accuracy, Pressure Measurement Range of 0-20bar to 1500bar, Compact and Rugged model, Wide Range of Media Compatibility, Low Static and Thermal Errors
OEM Strain Gauge Pressure Sensor MRA23 Characteristics:
Technology Strain Gauge
Type OEM Pressure Sensing Element
Standard Measurement Range (bar) 20, 50, 100, 200, 400, 800, 1500
Purpose and Application General Purpose, Compact Size / Miniature, High Pressure Range
Accuracy (combined LRH) 0.1% FS, 0.25% FS, 0.5% FS
Output Signal 1mV/V, 1.5mV/V, 2mV/V
