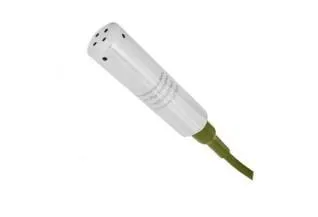

Submersible Level Transducer MRL23
PVDF housing and teflon coated cable, Wide Range of Media Compatibility (suitable for strong acids and bases), High Measuring Accuracy, Level Measurement Range of 0.5m H2O to 500m H2O, Rugged Model with IP67 Protection, Low Static and Thermal Errors, Reverse Polarity And Transient Current Protected
Submersible Level Transducer MRL23 Characteristics:
Technology Ceramic
Type Submersible Level Sensor
Standard Measurement Range (bar) 0.02, 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 50, 1mH2O-200mH2O, Other non standard range
Purpose and Application General Purpose, Corrosive Media, High Accuracy, Low voltage Excitation
Accuracy (combined LRH) 0.1% FS, 0.25% FS, 0.5% FS
Output Signal 4-20mA, 0-2.5V, 0-5VDC, 0-10VDC
