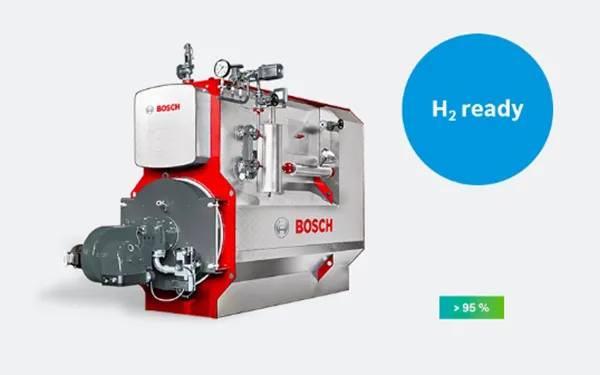

Universal steam boiler U-MB

Universal steam boiler U-MB

The product designation U-MB stands for "Universal Modular Boiler" (three-pass steam boiler in modular design). This type of boiler consists of several modules that perfectly meet your individual requirements.

At a glance

• Three-pass boiler for a small to medium steam requirement of 200 to 2,000 kg/h at up to 16 bar
• Less space required for easy deployment
• High level of efficiency thanks to the integrated economiser
• Can be used flexibly with different fuels and as multi-fuel firing (oil, gas, biogas, hydrogen)
• Intuitive touchscreen operation and PLC control
• Simple on-site wiring thanks to plug-in connections

advantages

overview

• The relevant elements of the boiler are configured with a focus on low emissions, high steam quality and optimum energy efficiency. Thanks to the modular design with the consistent use of design elements and identical parts from other series, you benefit from a particularly attractive price-performance ratio.
• The classic areas of application for the U-MB steam boiler are the beverage and food industry, laundry and cleaning companies and small industrial companies.

construction

• The U-MB steam boiler is designed as a three-pass flame tube/smoke tube boiler. It consists of several modules, the heat generator part in a three-pass design, the steam room above it and an integrated economiser. As a true three-pass boiler, there is no need for flow installations in the smoke tubes.
• The heat generator part of the U-MB is based on the UT boiler design – tried and tested thousands of times in practical use for decades. The generously dimensioned flame tube geometry enables an efficient combustion process.
• The choice of steam part significantly influences the steam quality. A generous dimensioning has a positive effect on the residual steam moisture.
• The integrated economiser has a direct impact on energy efficiency. The heat contained in the flue gases is used to preheat the boiler feed water and is thus largely recovered, reducing fuel consumption and emissions.
• The steam generator is type tested and is manufactured according to the strict guidelines of the quality assurance system module D of the pressure equipment directive.

Furnishing

You receive the Universal U-MB as a fully equipped unit. This includes the insulated boiler with attached equipment, the boiler control cabinet and a low-emission furnace.

basic equipment

Variable equipment according to customer requirements
