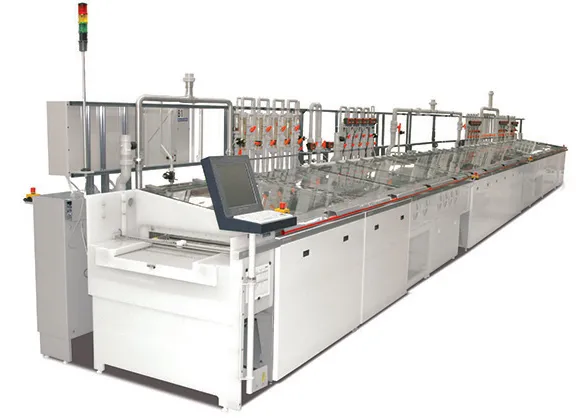

Printed Circuit Board Metallization Desmear

Features

First the drill dust is removed, then the smear in the bore holes softened and afterwards completely removed by a permanganate solution. The result is a micro fine textured resin surface.

• Process modules in stainless steel execution for high process temperatures

• Fully automatic dosing based on area calculations

• Electrolytical regeneration of permanganate without additional chemicals

• Fully automatic, individual proportioning controlled by analog level transducers

• Ultrasonic transmitters support the swelling and cleaning process

• Automatic vapour trap for the prevention of bath contamination due to vapour movement
