D-32107 Bad Salzuflen GERMANY
Service intended:

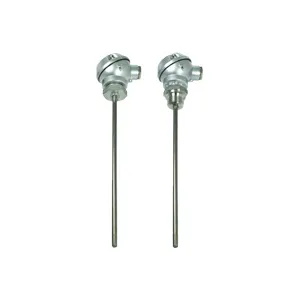

These rugged thermometers are well suited for machine and apparatus engineering, pressure vessels and piping as well as for environments in chemical process and food industry. The sheath model is flexible, 5 times external diameter.
Technical Data
Connection head
Form J, aluminium, Cable entry: M16 x 1,5 mm
Protection class
IP 54 per EN 60529
Connection socket
Ceramic
Sheath material
Fe-CuNi Typ (J): Stainless steel, 321
Ni-CrNi Typ (K): Inconel 600, 2.4816
Ø 3 / 4,5 and 6 mm
Temperature element
Thermocouple per DIN EN 60584
Fe-CuNi type (J)
NiCr-Ni type (K)
Accuracy class
Class 2 per DIN EN 60584, ± 2,5°C
