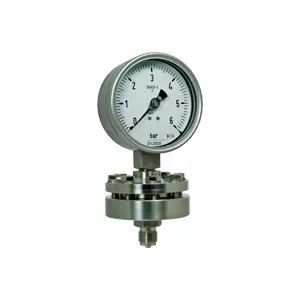

Chemical seals with screwed process connection
Service intended: With contaminated, hot and viscous media chemical seals are used as separators For special requirements special material seals are used. Cooling elements and capillary extensions are additional accessories.
Technical Data
Pressure ranges
0,6 ... 250 bar
Upper body
Stainless steel 316 Ti
Diaphragm
Stainless steel 316 L
Lower body
Galvanised carbon steel, alternatively Stainless steel 316Ti
Sealing ring
FPM
Process connection
per EN 837-1, G1/2B resp. G 1/2 bushing, carbon steel, alternatively Stainless steel 316Ti
Retainer flange
Galvanised carbon steel, alternatively stainless steel 316Ti
Bolting
Filling liquid
Silicone oil
Temperature stability Tmin / Tmax
- 20 ... +200°C
