Hybrid Stepper Motors 3709 Series

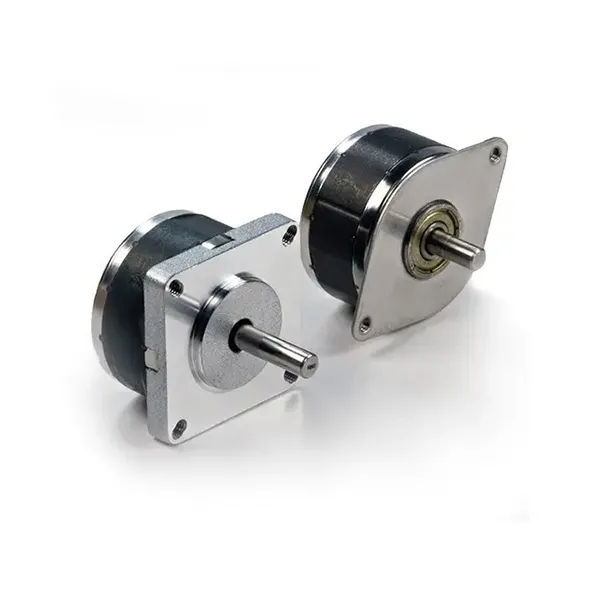

Hybrid Stepper Motors 3709 Series 3709Z-12
Specifications:
- 14 (36.60 mm) Frame Size
- 0.9° Step Angle
- 14.00 mm Length
- 0.0378 Nm Holding Torque
Motor Specifications
|
Base Motor Part Number
|
3709Z-12
|
|
Step Angle
|
0.9°
|
|
Frame Size
|
36.60 mm
|
|
NEMA Size
|
NEMA 14
|
|
Body Length
|
14.00 mm
|
|
Current (AMP)
|
0.3 AMP
|
|
Holding Torque
|
0.0378 Nm
|
|
Resistance
|
15.4 ohm
|
|
Rotor Inertia
|
3.66 g-cm²
|
|
Number of leads
|
4
|
|
Connection
|
Bipolar
|
|
Weight
|
0.055 kg
|
Operating Specifications
|
Radial Play
|
0.03 mm @ 0.454 kg
|
|
End Play
|
0.08 mm @ 1.361 kg
|
|
Shaft Run Out
|
0.05 TIR
|
|
Concentricity of Mounting Pilot to Shaft
|
0.08 TIR
|
|
Perpendicularity of Mounting Pilot to Face
|
0.08 TIR
|
|
Max Radial Load at Dimension "K" from mounting face
|
2.722 kg
|
|
Dimension "K"
|
12.70 mm
|
|
Max Axial Load
|
2.722 kg
|
|
Maximum Case Temperature
|
80.00 °C maximum
|
|
Ambient Temperature
|
-20.00 ° to 50.00 °C
|
|
Storage Temperature
|
-20.00 ° to 100.00 °C
|
|
Humidity Range (%)
|
85% or less, non-condensing
|
|
Magnet Wire Insulation
|
Class B 130 deg C
|
|
Insulation Resistance
|
100M Ohm at 500 VDC
|
|
Dielectric Strength
|
500 VDC for 1 min
|
Features and Benefits
Thin & Compact
3709 Series motors feature flat/puck-shaped design and range from 14 to 22 mm in thickness. Making the motor a perfect fit for compact and portable devices, where size or weight is essential.
How Did We Do It?
The motors feature a unique end-cap design that incorporates the bearings, and the entire unit is sealed and laser welded for strength and longevity of the product. Being resourceful allows us to create a very compact motor.
High Torque
3709 Series motors are capable of producing up to 16 oz-in of holding torque. This is quite astounding for such a small motor.
Multiple Mounting Options
Motors are offered in variety of standard mounting options in NEMA 17 offsets. Available hole patterns include Thru hole DO 0.13, #4-40 UNC and M3 x 0.5. Additionally, Lin Engineering can place the motor in almost any customer supplied/designed housing imaginable. Multiple Shaft options are also available.
Part of Our Signature Series
0.9 Degree step angle ensures smooth motion, while Signature Series further reduces resonancefor higher accuracy. The Signature Series was developed to help reduce system resonance and provide overall smooth motion. Depending on Application, using motors with the Signature Series technology may result in up to 40% less resonance being produced.
Reduce Resonance
Depending on application Signature Series Stepper Motor user can expect anywhere from 10-40% less resonance being produced.
Increase Accuracy
The design creates double the detent positions (un-energized cogging) in the standard stepper. When doubled, the amount of torque or drag that each detent position has is decreased by half, thus creating a smoother motor during operation
