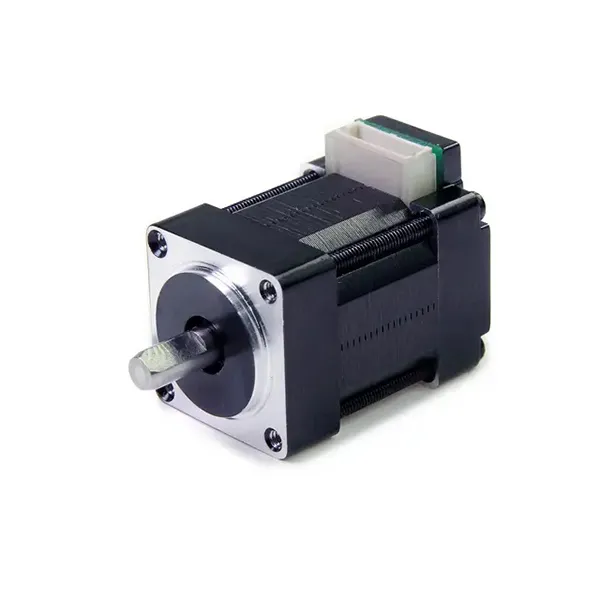

Rapid Prototyping Motors X208-030-02 series
HYBRID STEPPER MOTOR
Motor Specifications
Base Motor Part Number
X208-030-02
Configured Motor Part Number
Step Angle
1.8°
Frame Size
20.30 mm
NEMA Size
NEMA 08
Body Length
29.50 mm
Current (AMP)
0.5 AMP
Holding Torque
0.03 Nm
Resistance
8.8 ohm
Rotor Inertia
1.6 g-cm²
Number of leads
IC
Connection
Bipolar
Weight
0.040 kg
Operating Specifications
Radial Play
0.03 mm @ 0.454 kg
End Play
0.08 mm @ 1.361 kg
Shaft Run Out
0.05 TIR
Concentricity of Mounting Pilot to Shaft
0.08 TIR
Perpendicularity of Mounting Pilot to Face
Max Radial Load at Dimension "K" from mounting face
2.041 kg
Dimension "K"
12.70 mm
Max Axial Load
0.204 kg
Maximum Case Temperature
60.00 °C maximum
Ambient Temperature
-20.00 ° to 50.00 °C
Storage Temperature
-20.00 ° to 100.00 °C
Humidity Range (%)
85% or less, non-condensing
Magnet Wire Insulation
Class B 130 deg C
Insulation Resistance
100M Ohm at 500 VDC
Dielectric Strength
500 VDC for 1 min
