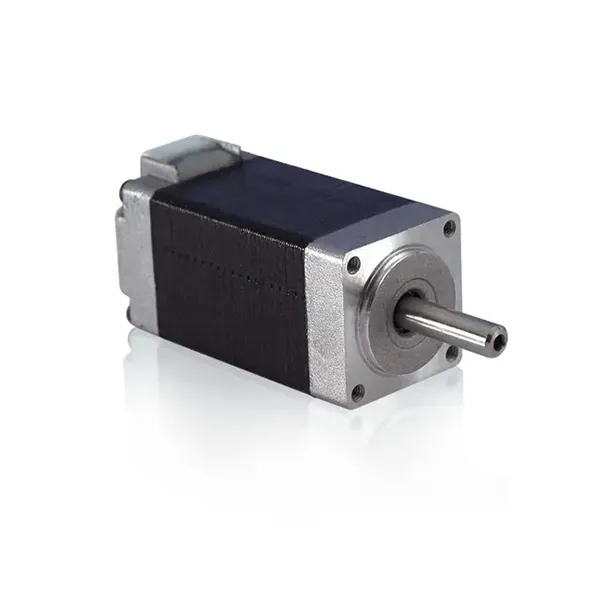

Lin Eng. Inc

Base Motor Part Number

208-13-01

Step Angle

1.8°

Frame Size

20.30 mm

NEMA Size

NEMA 08

Body Length

33.00 mm

Current (AMP)

0.6 AMP

Holding Torque

0.0212 Nm

Resistance

6.5 ohm

Rotor Inertia

1.83 g-cm²

Number of leads

4

Connection

Bipolar

Weight

0.082 kg

Radial Play

0.03 mm @ 0.454 kg

End Play

0.08 mm @ 1.361 kg

Shaft Run Out

0.05 TIR

Concentricity of Mounting Pilot to Shaft

0.08 TIR

Perpendicularity of Mounting Pilot to Face

0.08 TIR

Max Radial Load at Dimension "K" from mounting face

2.041 kg

Dimension "K"

12.70 mm

Max Axial Load

0.204 kg

Maximum Case Temperature

60.00 °C maximum

Ambient Temperature

-20.00 ° to 50.00 °C

Storage Temperature

-20.00 ° to 100.00 °C

Humidity Range (%)

85% or less, non-condensing

Magnet Wire Insulation

Class B 130 deg C

Insulation Resistance

100M Ohm at 500 VDC

Dielectric Strength

500 VDC for 1 min
