Hybrid Stepper Motors 3518 Series

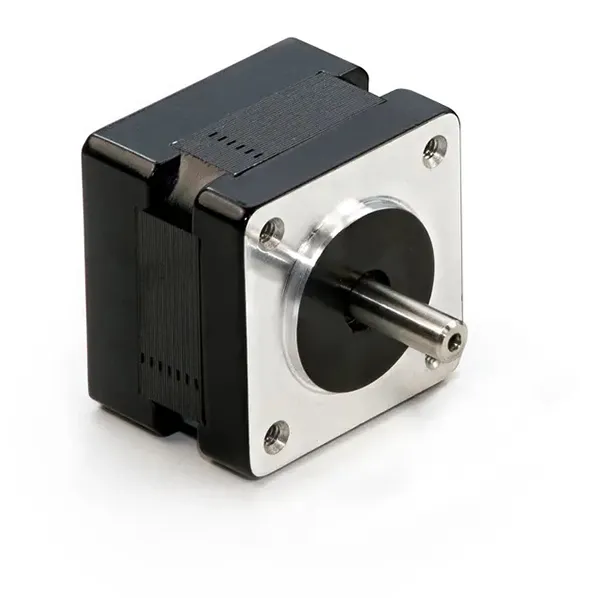

Hybrid Stepper Motors 3518 Series 3518X-08

Specifications:

14 (35.30 mm) Frame Size
1.8° Step Angle
26.00 mm Length
0.05 Nm Holding Torque

Motor Specifications

Base Motor Part Number	3518X-08
Step Angle	1.8°
Frame Size	35.30 mm
NEMA Size	NEMA 14
Body Length	26.00 mm
Current (AMP)	0.35 AMP
Holding Torque	0.05 Nm
Resistance	8.5 ohm
Rotor Inertia	10.97 g-cm²
Number of leads	4
Connection	Bipolar
Weight	0.114 kg

Operating Specifications

Radial Play	0.03 mm @ 0.454 kg
End Play	0.08 mm @ 1.361 kg
Shaft Run Out	0.05 TIR
Concentricity of Mounting Pilot to Shaft	0.08 TIR
Perpendicularity of Mounting Pilot to Face	0.08 TIR
Max Radial Load at Dimension "K" from mounting face	2.722 kg
Dimension "K"	15.75 mm
Max Axial Load	2.722 kg
Maximum Case Temperature	80.00 °C maximum
Ambient Temperature	-20.00 ° to 50.00 °C
Storage Temperature	-20.00 ° to 100.00 °C
Humidity Range (%)	85% or less, non-condensing
Magnet Wire Insulation	Class B 130 deg C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Customizations & Optimizations

Lin Engineering can ensure that your hybrid stepper motor is optimized to deliver the required performance for your specific application, whether it’s increasing torque at a specific speed range, reducing noise or vibration, or optimizing for minimal power consumption, or making specific modification to ensure proper and native fit within your assembly.

Customization Services Include:
