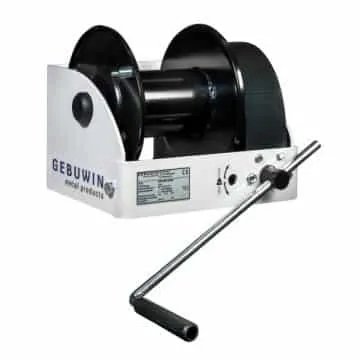

Worm gear hand winch 250 - 1500 kg

The Gebuwin worm gear hand winch has a transmission that consists of a worm shaft and wheel. Due to the fact that this transmission causes friction loss it also provides 50% of the braking system. The load pressure brake provides the other 50%. The combination of the braking system and robust design results in a very safe hoisting and pulling winch.

Product specifications

• Robust construction
• Primarily used for hoisting, also possible for pulling loads
• The braking mechanism consists of 50% by the friction in the worm gear transmission and 50% by a load pressure brake
• Static safety minimum factor 4
• Adjustable crank and recoil free
• All rotating parts run in maintenance free bearings
• The numbers in the product name correspond with the hoisting capacities on the first cable layer. Pulling capacity is approx. 2.5 times the hoisting capacity
• Cable outlet possible upward, downward and at rear.
• Standard paint finish in grey (RAL 7035) and black (RAL 9005) according to DIN 12944, C1M
