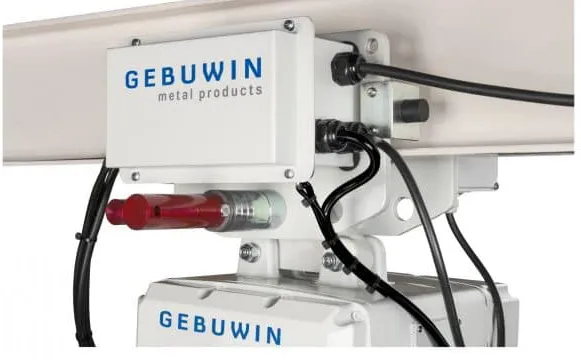

Electric chain hoist EH125 - 2000 with (electric) trolley

The electric chain hoist with eye or hook is available up to 2 tons. The body of the chain host is made of aluminum, it is compact, light and robust. The transmission is very smooth, vibration free and low noise.

Last but not least, the price of these electric chain hoists are very competitive.

Product specifications

• Plain trolley (T) or electric trolley (ET)
• Durable, safe and easy to use
• Aluminum body, compact, light and robust
• The pendant control is made of shock resistant plastic
• Corrosion resistant electromagnetic brake
• Very smooth transmission, vibration free and low noise
• Three-phase motor with two speeds (S1 and S2)
• Operation mode S3, insulation class F
• Power supply 400V / 50 – 60 Hz
• Low voltage control 48V
• Overload limiter
• Galvanized chain class DAT (G 80) (EN818-7)
• Standard length of chain is 3 m
• Ergonomic pendant control, IP65
• Standard pendant control length, 2 m
• IP55
• Wheel profile suitable for flat or tapered beams
• Safety lugs and rubber pads
• Standard: Limit switch horizontal movement (electric trolley)
