Drill winch DW1000

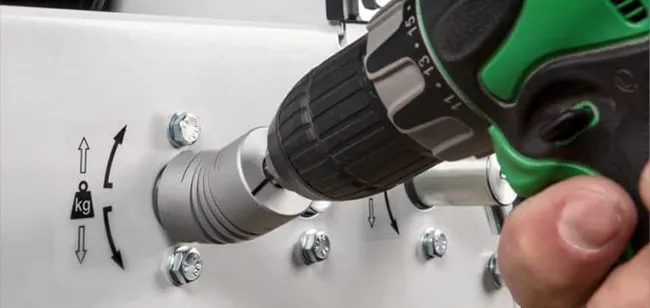

This Gebuwin drill winch can be operated with a drilling machine and is equipped with an automatic greasing system (AGS). The drill winch is designed to be used in a low frequent manner and is three times faster then a hand winch. This high quality, robust and safe wormgear winch has a safety factor of 4.

The unique feature of this winch is the low torque of 6 Nm needed to pull or hoist 1000 kg. That’s why this winch is suitable for a normal drilling machine (240V). Because of the automatic greasing system, maintenance is very low for this winch.

Product specifications

• Robust and safe hoisting and pulling winch
• In compliance with EN 13157, DIN 15020
• Static safety factor 4
• Transmission box IP54
• Right angled worm transmission and spur gearing
• Cable outlet upwards, downwards or at rear
• Suitable to operate with a drill machine or by hand
• Load pressure break with ratchet system
• Automatic grease system
• Paint thickness is 60 – 80 micron in 1 layer and in compliance with DIN/ISO 12944, C1M
