Gebuwin B.V.

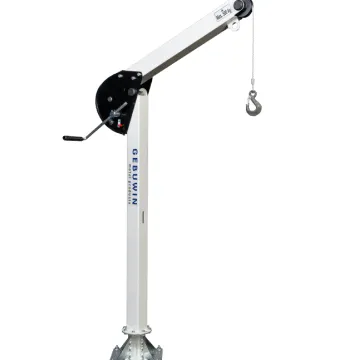

Swivel davit 125 - 500 kg

The modern in-house foldable swivel davit can be used in many different hoisting situations because the crane, weighing only 25 kilos, is fully portable. Gebuwin manufactures three types that differ in hoisting capacity and reach. The 125 kg type has a reach of 100 cm, the 250 kg type has a reach of 80 cm and the 500 kg type reaches 60 cm.

Product specifications

• Portable, only 25kg
• Easily foldable
• Rotates 360° in additional floor socket (zinc plated)
• Ready to use in a few seconds
• Low in maintenance
• Integrated winch according to EN 13157 with static safety minimum factor 4
• The numbers in the product name correspond with the hoisting capacities on the first cable layer
• Beam reach differs from 60cm, 80cm to 100cm
• Standard paint finish in grey (RAL 7035) according to DIN 12944, C1M
