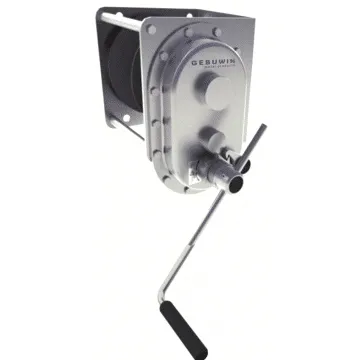

Spur gear winches 1000 - 1500 kg

The spur gear winches TL1000 and TL1500 are used to hoist a load of resp. 1000 and 1500 kg and can easily be mounted to a wall. The hoisting capacity is calculated according to the first cable layer on the cable drum. Due to the minimal friction loss in the transmission, these spur gear winches have a high performance efficiency and the robust design and closed spur gear box gives the winches a long lasting service. The spur gearboxes are also offered as a separate product. For more information, go to the spur gearboxes product page here.

Product specifications

• Robust construction
• Standard version with single cable drum
• Primarily used for hoisting loads, also used for pulling
• Adjustable crank and recoil free
• High performance efficiency due to minimal friction loss in transmission
• Equipped with a load pressure brake
• All rotating parts run in maintenance free bearings
• Static safety minimum factor 4
• Standard wall mounted, see here for floor (console) mounted versions
• The numbers in the product name correspond with the hoisting capacities on the first cable layer
• Standard paint finish in grey (RAL 7035) and black (RAL 9005) according to DIN 12944, C1M
• Sealed spur gear casing according to protection classification IP44
