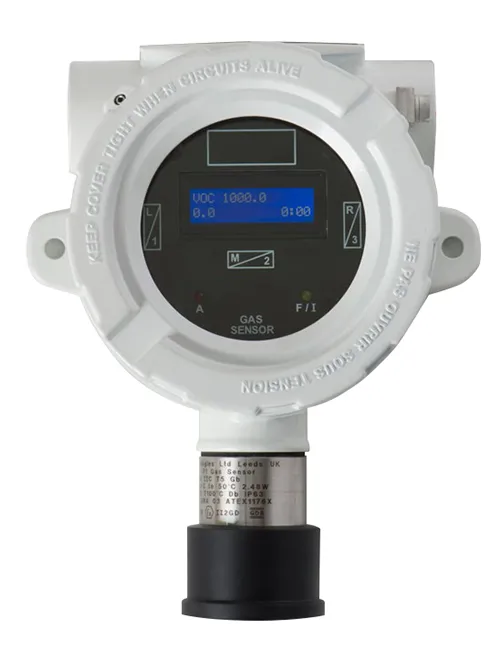

XDI-F1 Win
All Gas types Available
• Explosion proof
• Rugged and reliable
• 3 alarm points
• CANbus 4~20mA outputs
• Wide range of gas types / sensors
• Non intrusive adjustment magnets
• Back lit alpha numeric full status display
• Addressable or stand alone
• Hyper terminal communications / RS232 - live data and
set up with 232 adapter
• One man calibration
• 2 alarm relays plus fault relay or 3 alarm relays
• Data logging
Specifications
Certification
Explosion proof ATEX IECEx
112G Exd IIC T6-T3 Gb
112D Extb IIIC T85˚C Db
Power Supply - 15 to 30vDC 24v nominal
Outputs - 3 wire 4~20mA / 4 wire CANbus
Relays - Low alarm S.P.C.O / High alarm S.P.C.O / Fault alarm S.P.C.O
Rating - 0.5A @30vDC
Inhibit option during servicing
Logging - Intervals - one minute to one hour / Storage - 2,880 readings
Display - 2 line alpha numeric back lit status display: gas type, concentrating units, alarm levels, alarm status, low/high/over range), sensor ID, inhibit
Indicators - Alarm - Red LED / Fault - Amber LED (flashing when in inhibit)
Housing Material - Copper free aluminium alloy, optional stainless steel
Finish - Chemical resistant epoxy paint / Optional - Marine grade finish / Sensor material - Stainless Steel 316516
Ingress Protection - IP63 + weather shield IP65
Cable Entry - 2 x M20 - 1.5 pitch - alternatives 25mm - 3/4 NPT
Weight - 1.6kg
Temperature -15˚C to +55˚C
See certification for Exd use
Humidity - 0 to 99% RH non-condensing
