Gasbarre Products, Inc.

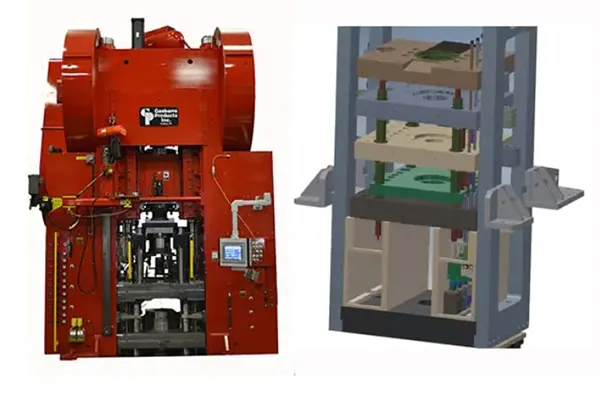

multi-action press series

The multi-action press series from Gasbarre is one of our biggest and best yet. This state-of-the-art technology is designed for complex, multi-level part construction and includes many high-quality components:

• Selective molding and selective ejection functions: Eliminates the need for expensive bridging of tools.
• Three independent lower punch platens: Provide total independent adjustability of each level.
• Adjustable selective molding stops: Provided on the die platen, as well as the #1/#2 punch platens.
• Adjustable selective withdrawal ejection: On the die platen, along with the #1/#2 punch platens. Permitting the use of any lower punch platen as the stationary level. This simplifies tool design and adaptation for complex part geometries.
• #3 punch platen: Has 1-1/2” of float for transfer in conjunction with a fixed mold position.
• Motorized position adjustments: With digital displays for ease of accessibility and precise control.
• Pneumatic dual upper punch system: Gives upper hub and counter bore capability.
• Top punch hold down function: Controls the part during ejection.
• Automatic central press lubrication system: Ensures that the correct amount of lubricant is applied at proper intervals.
• Presslog control system: Provides the processor-based press control with data storage through a touchscreen monitor operator interface.
• Servo filler shoe system: Gives total precise control of all shoe functions programmed through the touchscreen monitor.
• Tonnage monitor: Digitally displays the tonnage on the monitor and provides high and low parameter settings.
• Underfill/overfill: Used to reduce powder “splash out” from the die, as well as aiding in difficult filling applications.
