Gasbarre Products, Inc.

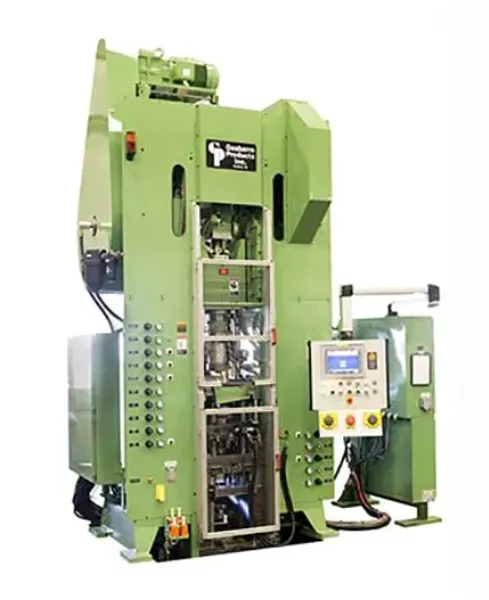

die set series mechanical powder presses

Our die set series mechanical powder presses are ideal for multi-level parts and applications requiring a removable die set and contain all of the following parts:

• set: Available in up to three lower punch configurations.
• Floating die platen: Utilized to achieve the lower action.
• Adjustable die table molding stops: Enable process adjustments and tool redressing without modifying tool adapters.
• Fill, ejection and molding stops: Worm gear-driven for easy accessibility and precise control.
• Adjustable lower punch rams: Provide individual independent adjustment of lower punches.
• Crosshead-style upper punch system: Provides precise adjustability, as well as precision alignment.
• Shuttle-type filler shoe system: Fully adjustable by use of worm gear-driven split cams.
• Withdrawal ejection system: Sequentially ejects tool levels using synchronized dual cams and push rods.
• Modular pneumatic core rod system: Has adjustable mold stops. Positions and motions are controlled independently of the die set. A fixed core rod, which is mounted directly in the die set, is also included.
• Density control rods: On the die and intermediate punch plates are independently adjustable permitting precise density control.
