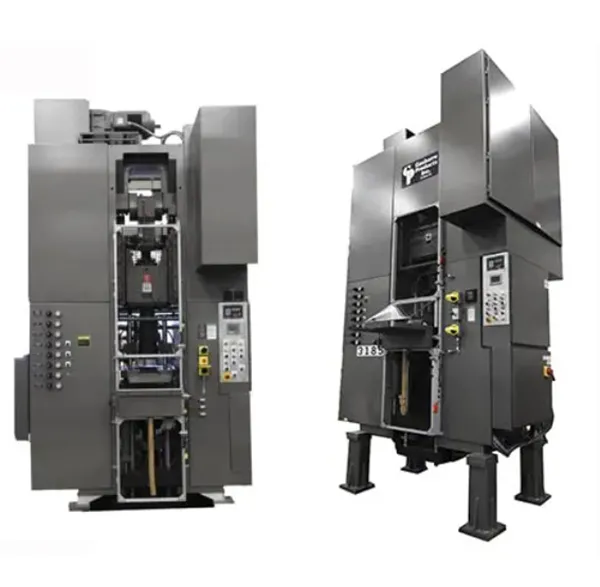

performance series presses

Our performance series presses are the affordable solution for single- to multi-level parts. These innovative machines comprise an intricate network of dependable components, including:

• Floating die platen: Utilized to achieve the lower action. A fixed die table stop permits the use of shelves in the die.
• Die control rods: Assist with achieving uniform density within the compacted part.
• Four post design die set: Fixed unit mounted in the press. The die plate and core rod plate float together.
• Adjustable lower and upper rams: Accommodate varying punch lengths.
• Gear-driven adjustments: For precise control.
• Ejection system: Bottom punch push-up utilizing an ejection cam and push rod.
• Shuttle-type filler shoe system: Fully adjustable by use of worm gear-driven split cams.
• Crosshead-style upper punch guidance system: Provides very precise punch-to-die alignment. This precision alignment enhances tool life.
• Lower ram guide plate: Gives superior lower punch guidance. The adjustable lower ram does not protrude through the guide plate. This creates a solid barrier protecting the adjustments from powder contamination.
• Die control adjustment: Located in the upper ram providing easy accessibility for adjusting and maintenance.
• Core rods: Can be mounted in a stationary position or floating to permit synchronous motion with the die plate. Mounting adapters are provided for both types of installation.
• Core rod adapter mounts: Bolted in for ease of removal and installation.
• Enhanced guarding system: Includes solid fully enclosed hinged side guards, as well as hinged interlocked guarding on the front and rear of the press.
