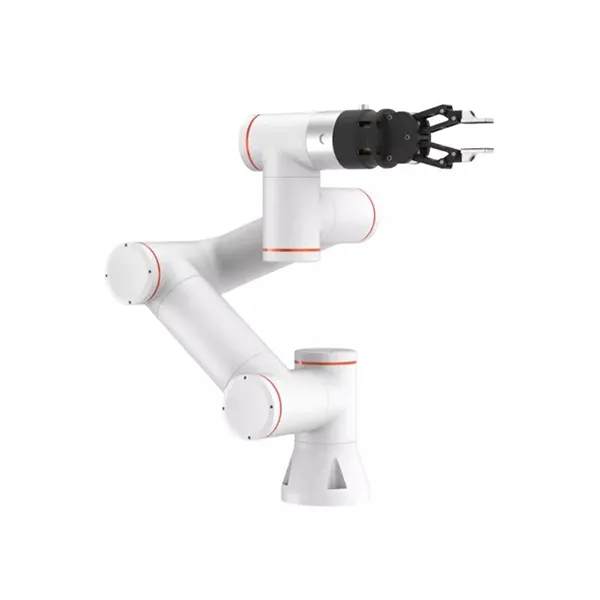

3kg payload Collaborative Robot

3kg payload Collaborative Robot

3kg payload 620mm reaching distance 6 axis collaborative robot

The cobot arm is mainly used for handling, palletizing, pick and place, also arc welding, with high reliability and excellent performacne.
This cobot is able to operate multiple procedure in narrow space, lightweight, compact structure.
With collaborative feature, the cobot can extend your time and space, liberate human from repeat work and hazard enviroment.
Repeat positioning accuracy: ±0.02mm
Armspan: 620mm
payload: 3kg

Technical Parameters

Model		EVC3
Specification	payload	3kg
	reach	620mm
	dof	6
	HMI	10.1 inch teach pendant or mobile terminal APP
Movement	repeatability	±0.02mm
	axis movement	max range	max speed
	axis 1	±175°	±180°/s
	axis 2	+ 85°/- 265°	±180°/s
	axis 3	±150°	±180°/s
	axis 4	+ 85°/- 265°	±180°/s
	axis 5	±175°	±180°/s
	axis 6	±175°	±180°/s
	typical TCP speed	1m/s
Features	IP level	IP66
	noise
	mounting agle	any direction
	end of arm I/O	digital input 2 digital output 2
		analog input 1 analog output 1
	end of arm power supply	24V/2A
	interface&openness	TCP/IP, RS485
	communication interface	C/C++, Lua, Pathon, ROS
Physics	base mounting diameter	130mm
	weight	about 15kg
	operating temperature	0-45℃
	operating humidity
	material	aluminum, steel
