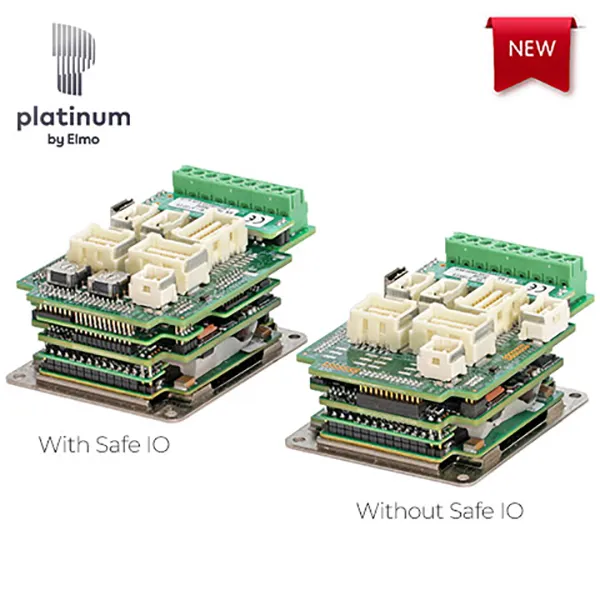

Platinum Solo Whistle

Platinum Solo Whistle

The Platinum Solo Whistle is a compact, digital servo drive, part of Elmo’s innovative Platinum series. The Platinum Solo Whistle is an integrated solution, which simplifies the connection to the application with an easy to connect interface. The Platinum Solo Whistle provides top servo performance, ultra-fast networking, increased processing power and rich feedback support.

The 66.0 x 46.5 x 28.35 mm servo drive is one of the world’s smallest DC input servo technology to feature Functional Safety support, safety over EtherCAT (FSoE) and integrated Safe I/Os (optional).

The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to help machine and robotic manufacturers create better machines through both superior motion-control and utmost safety.

Platinum Solo Whistle HighlightsNEW

• Miniature “Ready to Use” Most Powerful Servo Drive
• Up to 25A/100V, 9A/200V
• Qualitative power up to 2000W
• Ultra-Fast EtherCAT Networking
• Functional Safety IEC 61800-5-2 (SIL-3, Cat4 PL-e) & FSoE
• Integrated Safe I/Os (2 SIL3 inputs + 2 STO hardware inputs + SIL3 brake outputs)

Platinum Series HighlightsNEW

• Best-In-Class servo performance
• World’s smallest servo technology to feature functional safety and safety over EtherCAT (FSoE)
• Higher bandwidth, faster response, enhanced linearity and highest control resolutions
• Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency
• Added feedback support: up to three simultaneously, or two absolute feedbacks
• High processing power with large memory resources for better control, enhanced processing, and real time recording
