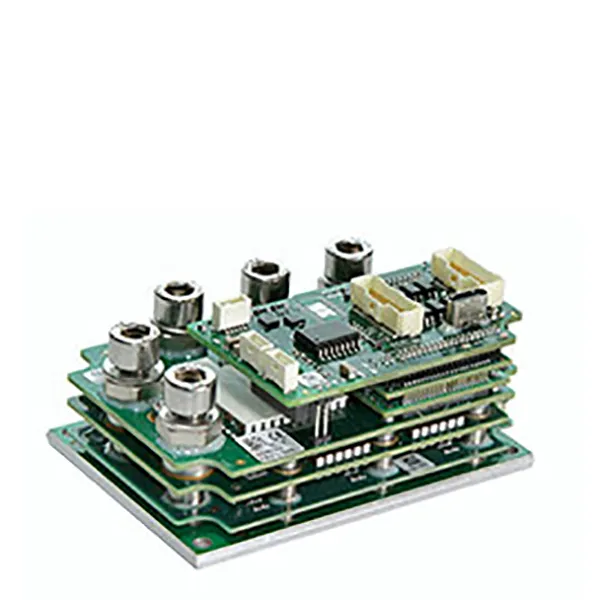

Platinum Solo Triple Twitter

Platinum Solo Triple Twitter

The Platinum Solo Triple Twitter is a ready-to-use, ultra high current servo drive and part of Elmo’s innovative Platinum series. The Platinum Solo Triple Twitter provides top servo performance, ultra-fast networking, increased processing power and rich feedback support.

This advanced high power density drive delivers up to 17 kW power in a 165.44 cm3 (10.09 Inch3) compact package 55 x 80 x 37.6 mm (2.16″ x 3.15″ x 1.48″).

The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to assist machine and robotic manufacturers in creating better machines through both superior motion-control and utmost safety.

Platinum Solo Triple Twitter HighlightsNEW

• World’s Highest Density Of Power And Intelligence
• High current servo drive Up to 270A/60V, 240A/80V, 210A/100V, 100A/200V
• Ultra Efficient, >99%
• Qualitative Power up to 17kW
• Ultra-Fast EtherCAT Networking
• Functional Safety IEC 61800-5-2 (SIL-3, Cat4 PL-e) & FSoE
• Integrated Safe I/Os (2 SIL3 inputs + 2 STO hardware inputs + SIL3 brake outputs)

Platinum Series HighlightsNEW

• Best-In-Class servo performance
• World’s smallest servo technology to feature functional safety and safety over EtherCAT (FSoE)
• Higher bandwidth, faster response, enhanced linearity and highest control resolutions
• Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency
• Added feedback support: up to three simultaneously, or two absolute feedbacks
• Composer2, Proprietary Drive Level SIL( Software In The Loop), allows running customer’s control algorithms within the drive’s real-time
• High processing power with large memory resources for better control, enhanced processing, and real time recording
