Elmo Motion Control Ltd.

Platinum Solo Twitter

Platinum Solo Twitter

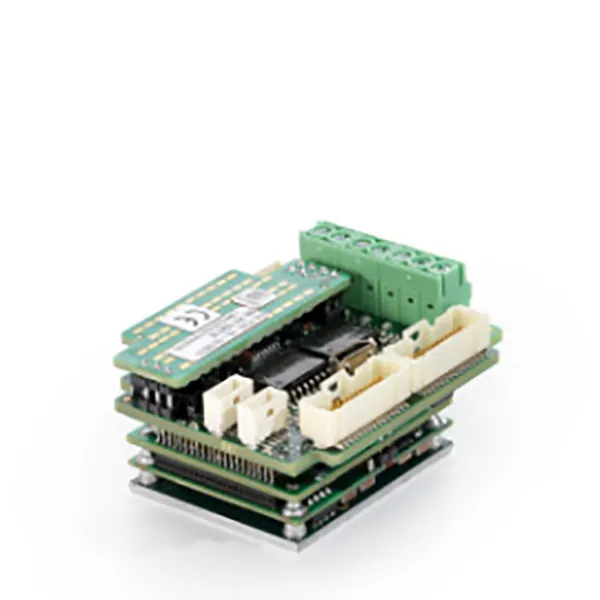

The Platinum Solo Twitter is the world’s smallest most powerful servo drive and part of Elmo’s Innovative Platinum series. The Platinum Solo Twitter is an integrated solution, which simplifies and speeds up the connection to the application with a “Fast & Easy” to connect interface. The Platinum Twitter provides top servo performance, ultra-fast networking, increased processing power and rich feedback support

With only 47.6 x 32.4 x 24.0 mm, the Platinum Solo Twitter servo drive is one of the world’s smallest servo technology to feature Functional Safety support, safety over EtherCAT (FSoE) and integrated Safe I/Os (optional).

The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to assist machine and robotic manufacturers in creating better machines through both superior motion-control and utmost safety.

Platinum Solo Twitter HighlightsNEW

• World’s Smallest Most Powerful Servo Drive
• Up to 80A/80V, 70A/100V
• Qualitative Power up to 5500W
• Innovative Platinum line core
• Ultra-Fast EtherCAT Networking
• Functional Safety IEC 61800-5-2 (SIL-3, Cat4 PL-e) & FSoE

Platinum Series HighlightsNEW

• Best-In-Class servo performance
• World’s smallest servo technology to feature functional safety and safety over EtherCAT (FSoE)
• Higher bandwidth, faster response, enhanced linearity and highest control resolutions
• Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency
• Added feedback support: up to three simultaneously, or two absolute feedbacks
• High processing power with large memory resources for better control, enhanced processing, and real time recording
