Platinum Whistle

Platinum Whistle

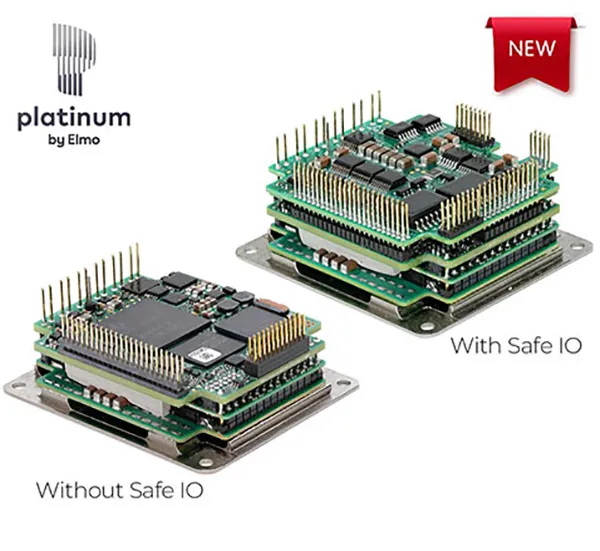

The Platinum Whistle is a compact, digital servo drive, part of Elmo’s innovative Platinum series. The Platinum Whistle provides top servo performance, ultra-fast networking, increased processing power and rich feedback support.

With only 55 x 46 x 19.85 mm, the Platinum Whistle servo drive is one of the world’s smallest servo technology to feature Functional Safety support, safety over EtherCAT (FSoE) and integrated Safe I/Os (optional).

The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to assist machine and robotic manufacturers in creating better machines through both superior motion-control and utmost safety.

Platinum Whistle HighlightsNEW

• Miniature most powerful servo drive Up to 25A/100V & 9A/200V
• Up to 2000W of continuous powerand 4000W at peak power
• Functional Safety IEC 61800-5-2 (SIL-3, Cat4 PL-e) & FSoE
• Integrated Safe I/Os (2 SIL3 inputs + 2 STO hardware inputs + SIL3 brake outputs + SIL3 output)

Platinum Series HighlightsNEW

• Best-In-Class servo performance
• World’s smallest servo technology to feature functional safety and safety over EtherCAT (FSoE)
• Higher bandwidth, faster response, enhanced linearity and highest control resolutions
• Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency
• Added feedback support: up to three simultaneously, or two absolute feedbacks
• High processing power with large memory resources for better control, enhanced processing, and real time recording
