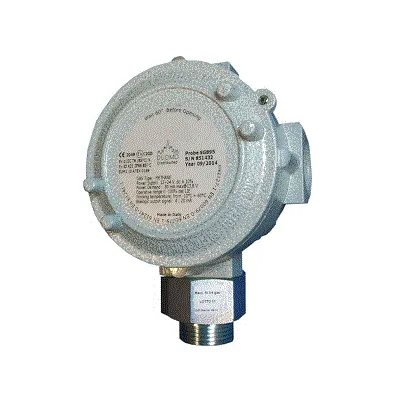

Gas sensing unit SG895

drift compensation function permits the probe to adapt to difficult ambiences and variable temperatures, avoiding false alarms due to anomalous events. Additionally, the SG895 is ATEX certified and is therefore ideal for very high specification applications.

The SG895 is controlled by a microprocessor. This conducts both self diagnostics and automatically calibrates the sensor when ambient conditions vary, thus avoiding false alarms. A hand-held datalogger can be connected to the sensor. This allows information about the sensor to be read and printed out i.e.:

• Sensor - Pellistor

• Measurement range 0-100% of LEL

• Data reading in memory

• Protection external EExd IIC T5

• Protection of the sensor DPE CESI 01 ATEX

• Serial number probe 10006043

• Serial number sensor CESI A0075/1

• 2 Year Warranty (applicable for a 12 month extension)

• Compatible with BX116, BX444M, GS300M, GS100M and BX150

• Detectable Gases: Methane, LPG, Ammonia, Hydrogen, Acetylene, Gasoline, Methanol, Ethanol, White Spirit, Acetone, Hexane, Ethyl Acetate, Toluene

• The serial number

• The sensor condition

• How many times the sensor has been powered up

• The number of times the alarms have occurred

• Anticipated days of life remaining

• How many auto adjusts have been made and the preset calibration state
