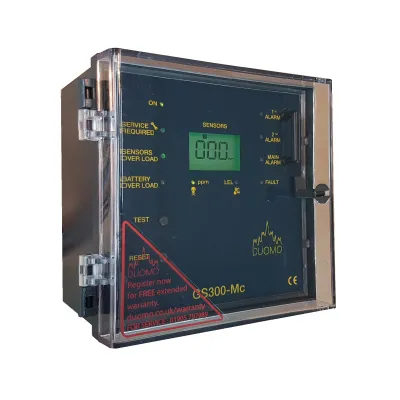

3 Zone Gas Detector GS300Mc

3 Zone Gas Detector GS300Mc

The latest addition to Duomo's gas detection range is the GS300Mc, a wall or panel mounted microprocessor based gas detector control unit. The GS300Mc is compatible with the complete range of Duomo gas sensors. All Duomo products are manufactured to meet relevant European Normatives and proposals for explosive and toxic gases.

The GS300Mc Gas Detector has a secure test facility which allows sensors to be fully tested by applying test gas without disconnecting the electrical supply to Gas valves. The GS300Mc can also be configured to meet customer requirements. The following parameters can be changed using on board DIP switches:

  • Number of sensors from 1 to 3

  • Type of gas to be sensed (explosive or toxic)

  • Intrinsically safe option (on or off)

  • Main alarm relay action (latching or auto-reset)

The GS300Mc has two plug in terminal blocks. One is for the incoming mains supply and alarm circuit wiring and the second is for connecting the sensor wiring. This reduces the chance of incorrect site wiring. The front panel has two overload lights which indicate when a short circuit or an overload has occurred on the sensor wiring.


  • Detection of Toxic, explosive gases & O2

  • Measuring range 0 - 20% LEL / 0 - 300ppm

  • For up to 3 Sensor

  • 3 Stages of Alarm - 1st Level Alarm, 2nd Level Alarm and Main Alarm

  • 4 - 20mA signal input from each sensor

  • Digital display - Colour change feature in Alarm

  • Wall or panel fascia mounted

  • Microprocessor control

  • Emergency Stop connections

  • IP44 protective rating

  • CE Certified and approved to EN50194 for explosive gases and EN50291 for toxic gases

  • 2 year Warranty - extendable to 3 years by registering this product on-line www.duomo.co.uk

  • NEW timed sensor test facility
