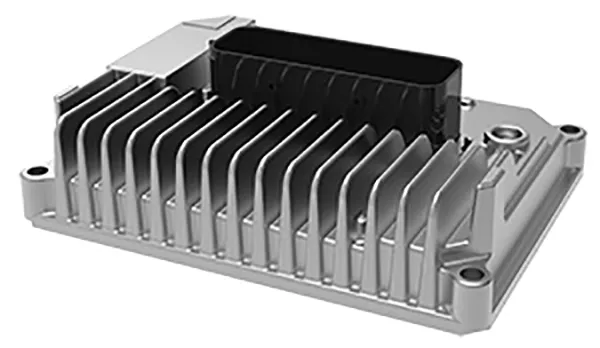

M22O Multi-purpose Electronic Control Unit
Introducing M22O
Multi-purpose Electronic Control Unit (ECU) with 2x CAN interfaces, precision 12-bit analog inputs, multiple timer inputs suitable for engine control, a selection of medium current outputs and one high current high-side/low-side pair of outputs for precision inductive load control up to 15A. Applications include Engine Control, Engine Control Module (ECM), Fuel System Control, Electric Vehicle (EV) Supervisory Control, Vehicle Control Unit (VCU) and Hybrid Control Unit (HCU)
Features
Build Options
At additional cost it is possible to build options that will modify the hardware specification within certain limits.
Custom Variations
Dana engineering services can rapidly develop custom ECUs based on the reusable block designs within OpenECU.
Development Tools
Hardware Specifications
MICROPROCESSOR
Processor Freescale
MPC5534
Clock Rate
80Mhz
Code Space
up to 768KB
RAM Space
832KB
Calibration Space
256KB
POWER
Supply Voltage
7V to 32V
Standby Current
0.25mA @ 12V
Sensor Supply
1 x 5V / 250mA
COMMUNICATION
High Speed CAN 2.0
2x
INPUTS
Analog
12
Differential VRS
1 x (2 pins)
Single Ended VRS
2
Frequency
1
Digital
4
FEPS
Cam Shaft
2x ±157V
Crank Shaft
1x ±157V
OUTPUTS
H-Bridge
1 (2 pins) – 5A
High Side Switch
1 x 15A
PWM Low Side
2 x 100mA
2 x 250mA
6 x 2A
Low Side Injector
1 x 15A / 5A (software configurable)
COMPATIBILITY
Vibration
6g random RMS
PHYSICAL
Dimensions (mm)
155 x 115 x 39
Weight
520g
Connector
46 pin
Enclosure
Aluminum
Location
Chassis mount
Operating Temperature
-40°C to 105°C
Environmental Protection
IP69K
