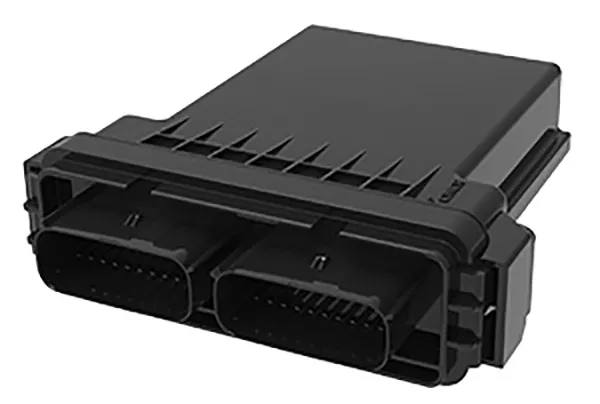

M110 multi-purpose automotive gateway
Introducing M11O
The M110 is a multi-purpose automotive gateway Electronic Control Unit (ECU) with 2x CAN. Applications include protocol translation, data routing, diagnostic routing, firewall, message mirroring, intrusion detection, CAN I/O expansion or smart relay driver. It comes in a highly durable plastic housing that is fully sealed (IP67) and can be mounted to the chassis.
Based on the same Freescale MPC5534 32-bit microcontroller as some of the other OpenECU™ controllers.
Features
Hardware Specifications
Microprocessor
Processor
SPC5534
Architecture
32-bit
Clock Rate
80 MHz
Code Space
512KB
RAM Space
64KB
Calibration Space
256KB
Power
Sensor Supply
1x 5V @250mA
Battery Power Pins
2 Power, 3 Ground
Communication
High Speed CAN 2.0
2x
SENT Rx
3x
I/O Summary
Digital/Analog Inputs
Up to 10x
Reprogramming Enable
1x @ -18V
Outputs
Low Current Low Side Drives
Up to 1x 20mA & 2x 100mA & 6x 500mA
Medium Current Low Side Drives
Up to 4x 2A
0-5V Analog Output
Up to 2x 10mA
Compatibility
Vibration
ISO 16750-3
Environmental Protection
IP67 – Sealed
ESD
±8kV – SAE J1113-13
Conducted and Radiated Emissions
CISPR25 Class 2
Conducted Transients
ISO 7637-2
Bulk Current Injection Immunity
ISO 11452-4
Physical
Material
Plastic (PPA GF33)
Dimensions
138 x 130 x 42 mm (W x H x D)
Connectors
2 x 20 pin (Molex MX-150)
Location
Chassis mount
Operating Temperature
ISO 16750-4 (-40o to 85oC)
Operating Voltage
9 to 32V
