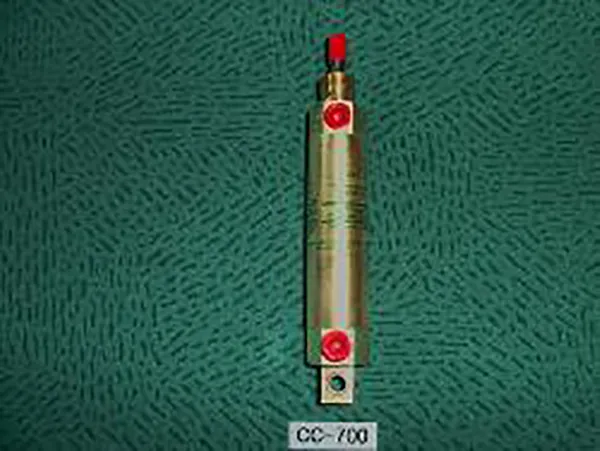

700 series 3-4" Bore Cylinders

700 series 3-4" Bore Cylinders

Designed for hydraulic or pneumatic operation. 11 mount types available. Pressure rated to 500 PSI. All parts are easily and economically serviceable and repairable. Non-corrosive construction throughout, with heavy wall tubes machined from 1/8" brass. Piston rods are polished and ground stainless steel. Threaded rods standard, non-threaded rods are available upon request (standard threading is in imperial measurements, metric threads available). Hollow rods available. Sealed with aircraft type "O" ring seals (Buna "N" standard compound); other seal types available. "U" cup piston seals available (add 1/2" to length). Standard rods are freely rotating; fixed, non-rotating rods available. Magnetic positioning piston available upon request.
