Cylinders & Valves, Inc.

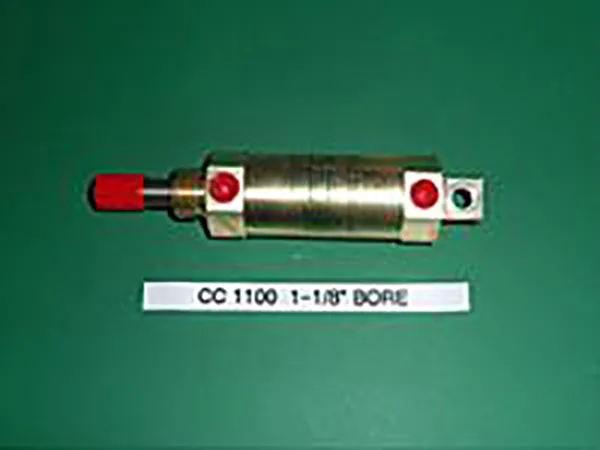

1100 series 1 1-8" Bore Cylinders

1100 series 1 1-8" Bore Cylinders

Designed for hydraulic or pneumatic operation. 11 mount types available. Pressure rated to 500 PSI. All parts are easily and economically serviceable and repairable. Non-corrosive construction throughout, with heavy wall tubes machined from 1/8" brass. Polished and ground stainless steel piston rods. Standard threaded rods (imperial measure threads standard, metric threading available). Non-threaded rods available upon request. Available with hollow rods. Standard rods are freely rotating; fixed, non-rotating rods available. Sealed with aircraft type "O" ring seals (Buna "N" standard compound). Other seal types available. "U" cup piston seals available (add 1/2" to length). Magnetic positioning piston optional.
