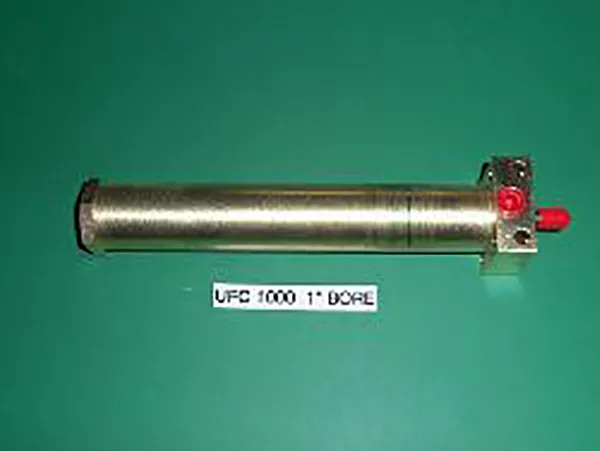

1000 series 1" Bore Cylinders

1000 series 1" Bore Cylinders

Designed for hydraulic or pneumatic operation. 11 mount types available. Pressure rated to 500 PSI. All parts are easily and economically serviceable and repairable. Non-corrosive construction throughout, with heavy wall tubes machined from 1/8" brass. Polished and ground stainless steel piston rods. Threaded rods standard, non-threaded rods available upon request (standard threads are imperial measure; metric threads available). Hollow rods available. Standard rods are freely rotating; available with fixed, non-rotating rods. Sealed with aircraft type "O" ring seals (Buna "N" standard compound). Other seal types available. "U" cup piston seals available (add 1/2" to length). Magnetic positioning piston optional.
