Cylinders & Valves, Inc.

300 series 3-8 Bore Cylinders

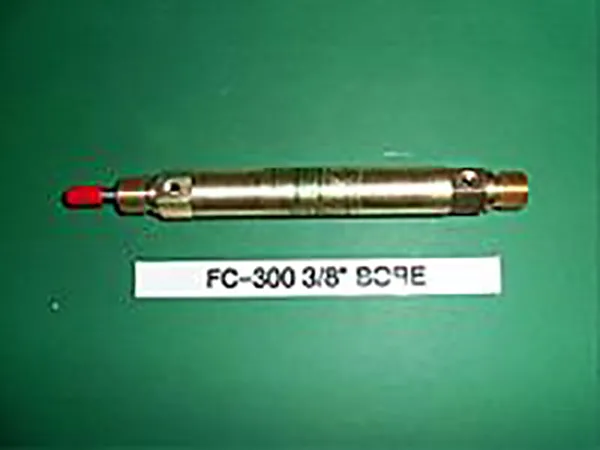

300 series 3-8" Bore Cylinders

Designed for hydraulic or pneumatic operation. 11 models/mount types available. Pressure rated up to 500 PSI. All parts easily and economically serviceable and repairable. Non-corrosive construction throughout, with heavy wall tubes machined from 1/8" brass. Polished and ground stainless steel piston rods. Threaded rods standard, non-threaded rods are available upon request (imperial threads are standard, metric threads available). Hollow rods also available. Standard rods are freely rotating; fixed, non-rotating rods are available upon request. Sealed with aircraft type "O" ring seals (Buna “N” standard compound), other seal types available if needed. Available with magnetic positioning piston.
