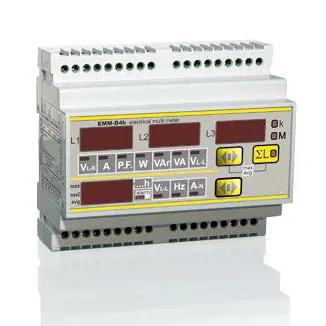

EMM-D4h
The EMM series digital multimeters allow measurement of the main electrical quantities of power distribution networks. The local display of over 30 measured quantities is carried out by using four red LED displays, thus ensuring good readability and simultaneous reading of several measurements.
INPUTS
The EMM instruments provide measurement inputs for three currents and three voltages in order to be suitable for use on single-phase lines, on unbalanced three-phase lines both in 4-wire systems, 3-wire systems without neutral or with non-distributed neutral. completely autorange with indication of the unit of measurement in Kilo or Mega through appropriate LEDs.
MEASURES - DISPLAY
The measurements are made in true effective value of voltage and current, frequency, temperature and all other calculated quantities are displayed on the 3 digit displays. On the displays it is possible to display the value of each single phase of the selected quantity at the same time. The fourth display shows the quantities that do not include measurements divided by single phase and for the display of the "three-phase" value of the voltage and the connected voltage.
APPLICATIONS
The use of EMM series digital multimeters is recommended in all those applications involving the local display of electrical quantities.
The typical applications will therefore be in all power distribution panels in both the industrial and the tertiary sectors, for machines, motors, generators, etc. The immediacy and simplicity in interpreting the readings for measurements with clear 7-segment LED displays, LEDs points for the identification of the displayed quantity and only three buttons with an intuitive function do not exclude the use even in the simplest applications.
