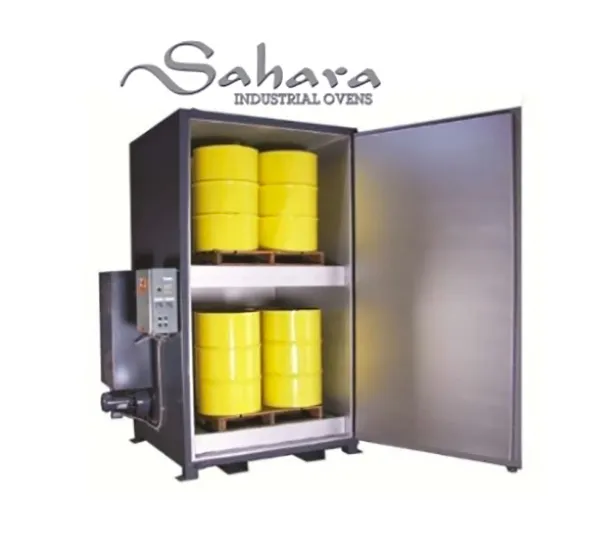

Model EV8 Electric Drum Heater
Model EV8 Electric Drum Heater
Our Model EV8 Electric Drum Heater (and/or Tote Heater), with its space saving vertical footprint, features state-of-the-art digital controls with independent over-temperature protection. Low-watt density heaters, perfect for your drum storage and drum heater needs, where 1 - 8 drums or 1 - 2 Totes require heating or temperature control.
The Benko Products SAHARA HOT BOX is the recognized industry leader in 55-gallon drum and/or Tote heating equipment.
Model E8 Electric Drum Heater Specifications
Details
The Hot Box has many unique features:
• Precise digital temperature control with overtemperature protection.
• Portable; just pick-up with a forklift.
• Built-in spill containment.
• Zero-ground clearance available.
• 3-Year Manufacturer's Warranty!
Capacity
8 drums (55 gal.) or 2 totes
8,000 lbs total capacity
Materials of Construction
All steel construction includes:
• 12 gauge interior and 14 gauge exterior walls
• Integrated framing and structural members ensure toughness
• 304 stainless steel construction available
Dimensions
Interior dimensions:
59"W x 55.25"D x 98"H
Exterior dimensions:
66"W x 62"D x 117"H
Insulation
3" thick, 6# density mineral wool
Heating Medium
Electricity
Heat Capacity
• 15KW (optional kw ratings available)
• 240 or 480 volt, 3 phase
(additional voltages available)
• Digital temperature controller with independent high temperature cut off.
Temperature Range
Room temperature to 300°F
Spill Containment Pan
55 gallon capacity
Finish
• Exterior finished with acrylic enamel
• Interior finished with heat resistant finish
• Stainless steel available
• Outdoor use option
Weight
3,125 lbs.
Installation
Shipped completely assembled.
Set in place and hook up power supply.
Air Circulation
2000 cfm air circulation blower with controls; 2 HP, TEFC
* Electric models not to be used to heat flammable or combustible materials.
* Electric models are not explosion proof rated and should not be used in hazardous locations.
* Class A ovens available for heating flammables.
