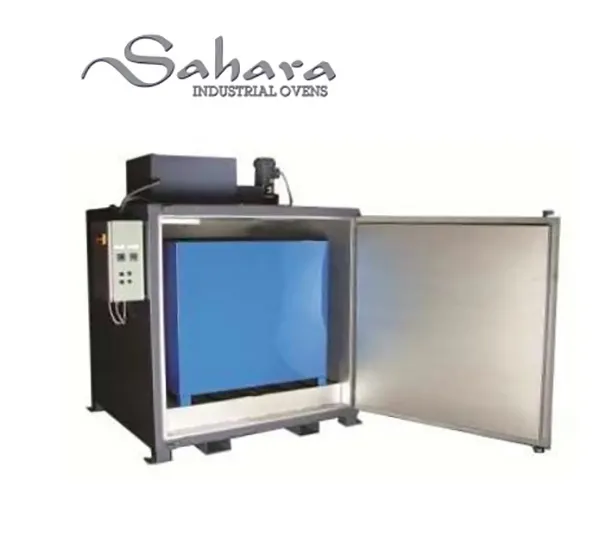

Model E4 Electric Drum Heater
Model E4 Electric Drum Heater
Our Model E4 Electric Drum Heater features state-of-the-art digital controls with independent over-temperature protection. Low-watt density heaters assure years of trouble-free operation, perfect for your drum storage and drum heater needs, where 1 - 4 drums require heating or temperature control.
The Benko Products SAHARA HOT BOX Drum Heaters and Ovens are recognized as the industry leader in 55-gallon drum heating equipment.
Model E4 Electric Drum Heater Specifications
Details
The Hot Box has many unique features:
• Precise digital temperature control with overtemperature protection
• Portable; just pick-up with a forklift
• Built-in spill containment
• Zero-ground clearance available
• 3-Year Manufacturer's Warranty!
Capacity
4 drums (55 gal.) or 1 tote
4,000 lbs. total capacity
Materials of Construction
All steel construction includes:
• 12 gauge interior and 14 gauge exterior walls
• Integrated framing and structural members ensure toughness
• 304 stainless steel construction available
Dimensions
Interior dimensions:
57.5"W x 55.75"D x 50.5"H
Exterior dimensions:
66"W x 62"D x 85"H
Insulation
3" thick, 6# density mineral wool
Heating Medium
Electricity
Heat Capacity
• 9KW (optional kw ratings available)
• 240 or 480 volt, 3 phase (additional voltages available)
• Digital temperature controller with independent high temperature cut off
Temperature Range
Room temperature to 300°F
Spill Containment Pan
55 gallon capacity
Finish
• Exterior finished with acrylic enamel
• Interior painted with heat resistant finish
• Stainless steel available
Weight
2,000 lbs.
Installation
Shipped completely assembled. Set in place and hook up power.
Air Circulation
1020 cfm air circulation blower with controls; 3/4 HP, TEFC. Roof mounted
* Electric models not to be used to heat flammable or combustible materials.
* Electric models are not explosion proof rated and should not be used in hazardous locations.
* Class A ovens available for heating flammables.
