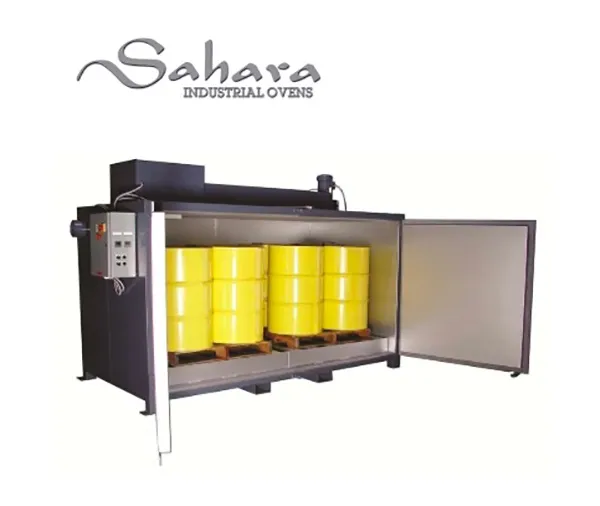

Model E8 Electric Heater
Model E8 Electric Heater
Our Model E8 Electric Heater (and/or Tote Heater) features state-of-the-art digital controls with independent over-temperature protection. Low-watt density heaters assure years of trouble-free operation, perfect for your drum storage and drum heater needs, where 1 - 8 drums or 1 - 2 Totes require heating or temperature control.
The Benko Products SAHARA HOT BOX is recognized as the industry leader in 55-gallon drum and/or Tote heating equipment.
Model E8 Electric Drum Heater Specifications
DetailsThe Hot Box has many unique features:• Precise digital temperature control with overtemperature protection• Portable; just pick-up with a forklift• Built-in spill containment• Zero-ground clearance available• 3-Year Manufacturer's Warranty!
Capacity8 drums (55 gal.) or 2 totes8,000 lbs total capacity
Materials of ConstructionAll steel construction includes:• 12 gauge interior walls and 14 gauge exterior walls• Integrated framing and structural members ensure toughness• 304 stainless steel construction available
DimensionsInterior dimensions:111.75"W x 55.25"D x 48.5"HExterior dimensions:118.75"W x 62"D x 83.75"H
Insulation3" thick, 6# density mineral wool
Heating MediumElectricity
Heat Capacity• 18KW (optional kw ratings available)• 240 or 480 volt, 3 phase(additional voltages available)• Digital temperature controller with independent high temperature cut off.
Temperature RangeRoom temperature to 300°F
Spill Containment Pan104 gallon capacity
Finish• Exterior finished with acrylic enamel• Interior finished with heat resistant paint• Stainless steel available• Outdoor use option
Weight3,175 lbs.
InstallationShipped completely assembled. Set in place and hook up power supply.
Air Circulation2000 cfm air circulation blower with controls; 2 HP, TEFC
* Electric models not to be used to heat flammable or combustible materials.* Electric models are not explosion proof rated and should not be used in hazardous locations.* Class A ovens available for heating flammables.
