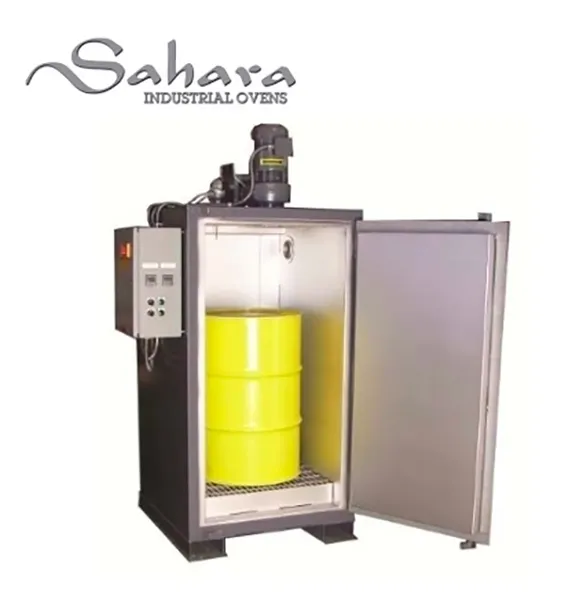

Model E1 Electric Drum Heater
Model E1 Electric Drum Heater
Need to heat or otherwise control the temperature of a single 55 gallon drum? Our Model E1 Electric Drum Heater features state-of-the-art digital controls with independent over-temperature protection. Low-watt density heaters assure years of trouble-free operation, perfect for your single drum storage and heater needs.
The Benko Products SAHARA HOT BOX Drum Heaters and Ovens are recognized as the industry leader in 55-gallon drum heating equipment.
Model E1 Electric Drum Heater Specifications
Details
The Hot Box has many unique features:
• Precise digital temperature control with overtemperature protection
• Portable; just pick-up with a forklift
• Built-in spill containment
• Zero-ground clearance available.
• 3-year Manufacturer's Warranty.
Capacity
1 drum (55 gal.), or 1,000 lbs total
Materials of Construction
All steel construction includes:
• 12 gauge interior and 14 gauge exterior walls
• Integrated framing and structural members ensure toughness
• 304 stainless steel construction available
Dimensions
Interior dimensions:
29"W x 29.25"D x 49"H
Exterior dimensions:
36"W x 36"D x 84.5"H
Insulation
3" thick, 6# density mineral wool
Heating Medium
Electricity
Heat Capacity
• 6KW (optional kw ratings available)
• 240 or 480 volt, 3 phase (additional voltages available)
• Digital temperature controller with independent high temperature cut off.
Temperature Range
Room temperature to 300°F
Spill Containment Pan
14 gallon capacity
Finish
• Exterior finished with acrylic enamel
• Interior finished with heat resistant silver
• Stainless steel available
• Outdoor use option
Weight
950 lbs.
Installation
Shipped completely assembled.
Set in place and hook up power supply.
Engineering
Custom engineered, computer designed units are available. Contact us for more information.
Air Circulation
330 cfm air circulation blower with controls; 1/3 HP, TEFC
* Electric models not to be used to heat flammable or combustible materials.
* Electric models are not explosion proof rated and should not be used in hazardous locations.
* Class A ovens available for heating flammables.
